All-Tube Realism Meets Digital Cab Simulation Efficiency
The Synergy SYN-20IR bridges the gap between traditional tube tone and modern direct-rig convenience. Designed for gigging musicians, home studio producers, and tone chasers, the SYN-20IR combines an all-tube 20-watt power section with Synergy’s modular preamp architecture and high-resolution Impulse Response (IR) speaker simulation.
Unlike standard digital modeling amplifiers that emulate tube behavior through software, the SYN-20IR runs authentic high-voltage tube circuitry through its pre-amp and 6V6 power section. Digital processing is utilized exclusively where it excels: delivering ultra-realistic, cabinet-simulated direct outputs via USB or balanced XLR to your PA or recording interface—eliminating the need to carry heavy speaker cabinets or mic up stage setups.
Equipped with an onboard Clean channel plus a single module dock, the SYN-20IR operates as a 3-channel amplifier setup. Load any dual-channel Synergy module—designed in collaboration with legendary builders like Soldano, Friedman, Bogner, Diezel, and Morgan—to build a customized, pure-tube signal chain.
Product Intelligence & Tone Matrix
- Best For: Home Recording, Silent Stage Performance, Studio Tracking, Worship, Fly Rigs
- Tone Profile: Dynamic, Organic, Dynamic Tube Sag, Full Harmonic Spectrum, High-Definition IRs
- Compared To: Fractal Audio FM3, Neural DSP Quad Cortex, Kemper Profiler, Revv D20
- Amplifier Type: All-Tube Head Platform with Digital IR Cabinet Emulation
- Power Section: 20 Watts (Cathode Biased 6V6 Power Tubes, 12AX7 Preamp Tubes)
- Module Docking: Holds 1 Interchangeable Synergy Dual-Channel Preamp Module (Sold Separately)
- Total Available Channels: 3 Channels (1 Onboard Clean Channel + 2 Channels via Inserted Module)
- Direct Outputs: Balanced XLR Direct Out with Selectable IRs, USB Audio Interface Output
- Tone Shaping Controls: Master Volume, Presence, Onboard Clean Gain/Tone, MIDI Capability, FX Loop
Why Choose the SYN-20IR Direct Platform?
- True Tube Dynamic Response: 100% analog tube path delivers actual tactile feedback, volume knob cleanup, and harmonic richness digital DSP algorithms attempt to model.
- Zero Mic Maintenance: Send studio-grade cabinet profiles directly to FOH or your DAW using onboard cab presets or custom third-party IR uploads via software.
- Modular Expansion: Upgrade your amplifier's tonal capabilities by hot-swapping modular preamps rather than purchasing entire new amp heads.
Features
● 20W lightweight all-tube modular guitar amplifier
● Tubes: 2 x EL84 and 2 x 12AX7 tubes (two additional 12AX7 in the module)
● Builtin clean channel based on vintage American tube combos
● Volume and Tone control
● Selectable Power Amp Structure Modes:
● Mode A: Balanced negative feedback for a clear yet punchy sound
● Mode B: Vintage style phase inverter with relaxed mids and a bright, shimmering high end.
● Mode C: Modern HiFi style phase inverter and low negative feedback delivers a modern, tight feel with solid lows and a darker high end.
● Master Volume control
● Reactance dynamic presence control
● Low-latency IR cabinet simulation (bypassable)
● 4 IR presets, individually programmable per channel
● Load your own IRs via the Software Editor
● Included 3-button programmable MIDI footswitch pedal
● 7-Pin MIDI Cable Included
● Ultra-transparent series FX loop
● XLR Balanced Output with Ground Lift
● Cab-less operation
● Headphone Output with dedicated VOLUME control
● MIDI programmable (up to 128 presets)
● MIDI/Footswitch Input

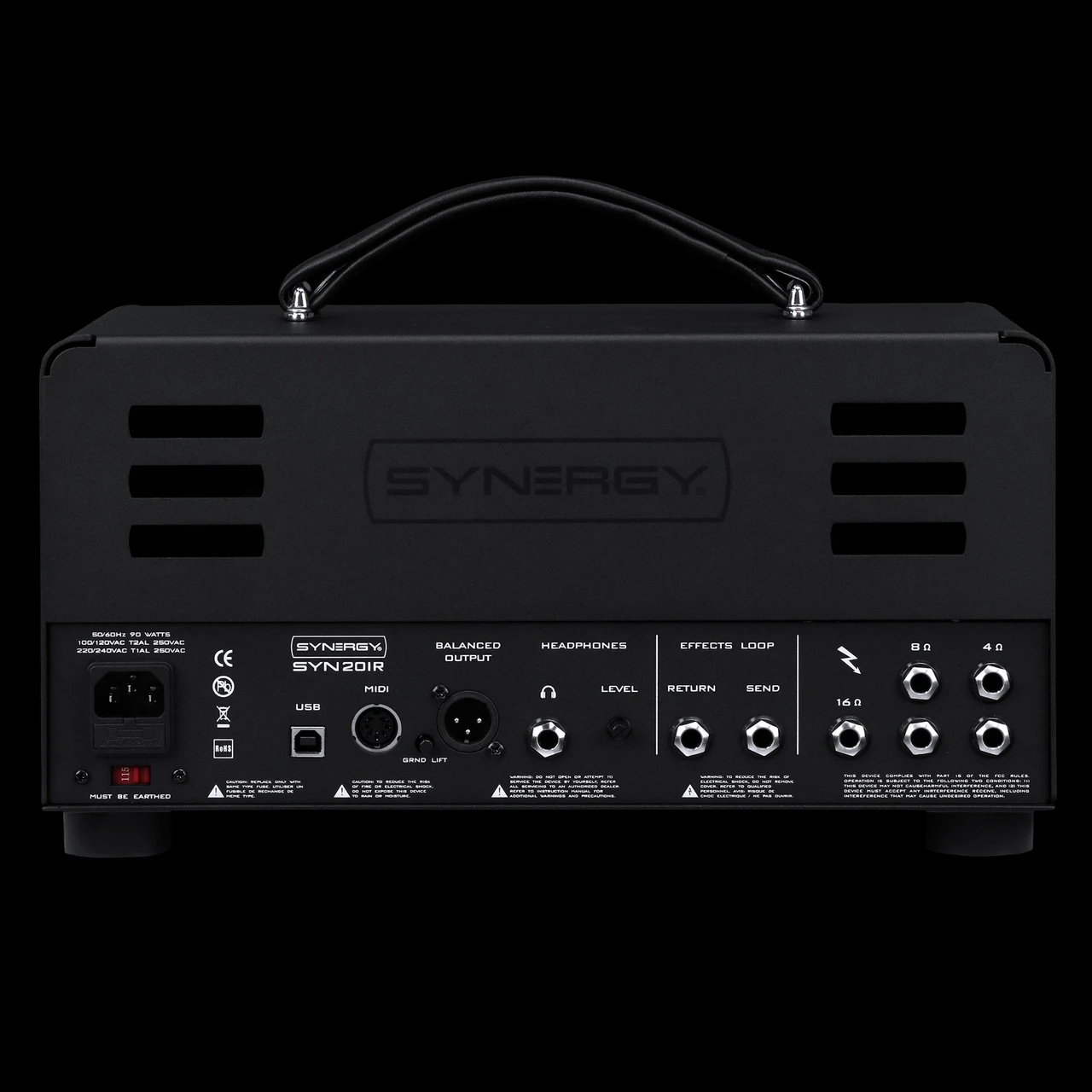

● 1x16 ohm, 2 x 8ohm (parallel) and 2x4 ohm (parallel) speaker connectors
● Synergy Software Editor
● Includes a 6’ USB Cable
● Limited 5-Year Warranty
● Dimensions: 14” (W) x 8.5” (D) x 7.5” (H)
● Weight: 16.4 lbs.
