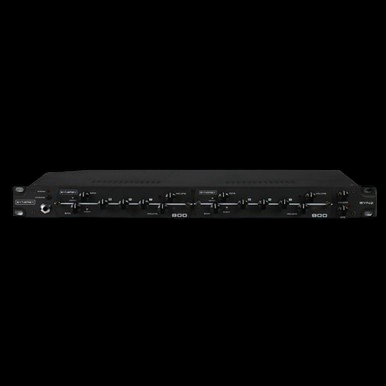

Four Channels of Boutique All-Tube Power in a Single Rack Space
The Synergy SYN-2 Double Module Tube Preamp is the ultimate high-voltage modular command center for stage, studio, and rack setups. Designed to house two dual-channel Synergy preamp modules simultaneously, the SYN-2 grants you instant foot-switchable access to four distinct, 100% analog tube channels. It allows you to seamlessly mix and match iconic preamp circuits from world-renowned amp designers—including Soldano, Friedman, Bogner, Diezel, and Morgan—in one compact 1U hardware unit.
Engineered for seamless integration into complex guitar rigs and modern recording environments, the SYN-2 features full MIDI programmability, letting you switch channels, bypass state, and cabinet simulations via any standard MIDI controller. For direct recording or silent stage applications, the SYN-2 incorporates onboard cabinet emulation with balanced XLR outputs, delivering authentic speaker-and-mic dynamics directly to your audio interface or house PA system.
PLEASE NOTE:
The SYN-2 requires two Synergy Preamp Modules (sold separately) to produce sound.
Equipped with a main chassis-mounted 12AX7 tube to complement the dual 12AX7s running inside each installed module, the SYN-2 preserves genuine high-voltage tube dynamics, rich harmonic overtones, and instant volume-knob responsiveness across all four channels.
Sanctuary Expert Note:
"The SYN-2 is the centerpiece for modern modular guitar rigs. Imagine having a genuine Soldano SLO high-gain rhythm, a Friedman HBE lead, a Bogner Ecstasy crunch, and a Morgan AC clean all sitting in a single rack space, controllable via MIDI. It gives you true tube tone on stage or in the DAW without compromise."
Product Intelligence & Tone Matrix
- Best For: Touring Rack Rigs, Studio Tracking, Silent Stage Systems, MIDI-Controlled Rigs, Fly Rigs
- Tone Profile: Dynamic High-Voltage Warmth, Multi-Channel Versatility, Tight Low-End Focus, Organic Harmonic Crunch
- Compared To: TriAxis Preamp, Marshall JMP-1, Engl E570, Egnater M4, Two Notes Le Preamp
- Preamp Architecture: All-Tube 1U Rackmount Hardware Dock (Houses 2 Interchangeable Dual-Channel Modules)
- Tube Complement: 1 x 12AX7 (Chassis) + Dual 12AX7s per installed module (5 x 12AX7s total when fully loaded)
- Total Available Channels: 4 Channels (via 2 installed dual-channel modules) with MIDI and Footswitch Control
- Direct Recording: Balanced XLR Direct Output with Cabinet Simulation & Ground Lift

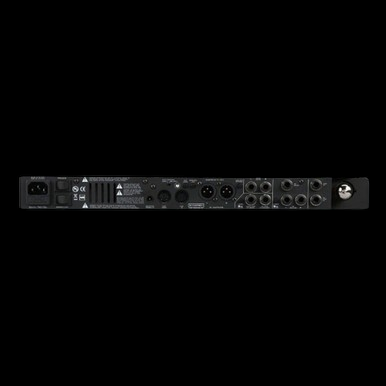

- Connectivity: FX Loop, Main Out, Sag-Control Output, MIDI In/Thru, 3-Button Footswitch Jack
- Included Accessories: 3-Button Programmable Footswitch Included
Key Integration Capabilities
- Direct DAW & FOH Performance: Send four high-voltage tube channels directly to recording interfaces or front-of-house systems using Fryette-designed cabinet emulation.
- 4-Cable Method Integration: Connect the SYN-2 into the effects loop of your existing amp head or combo to add four brand-new boutique tube channels while retaining your host amp's native tone.
- Advanced MIDI Control: Map channel selection, true-bypass switching, and external FX loop states directly to your favorite MIDI switcher or pedalboard floor controller.
