Suhr SL68 MKII Hand-Wired 100W Tube Amp Head - Black Tolex

The Ultimate 100-Watt Hand-Wired British Super Lead Head

Engineered by John Suhr and the master builders in Lake Elsinore, California, the Suhr SL68 MKII™ Hand-Wired Amp Head represents the uncompromising pinnacle of 100-watt vintage British Super Lead tone. Built with point-to-point hand-wired construction, custom hand-wound transformers, and ultra-premium components, the SL68 MKII captures the unmatched punch, massive low-end authority, and vocal harmonic complexity of legendary late-1960s Plexi amplifiers.

Driven by four matched EL34 power tubes and three 12AX7 preamp tubes, the SL68 MKII generates a full 100 watts RMS of Class A/B power. The updated MKII design integrates John Suhr's transparent post-phase-inverter Master Volume (PPIMV) circuit on the rear panel. This allows players to dial in aggressive power-tube breakup, natural compression, and touch-sensitive sag at practical stage, studio, or rehearsal volumes without sacrificing high-end transparency or bass response.

Dual Inputs, Channel Bridging & Precision Tone-Shaping

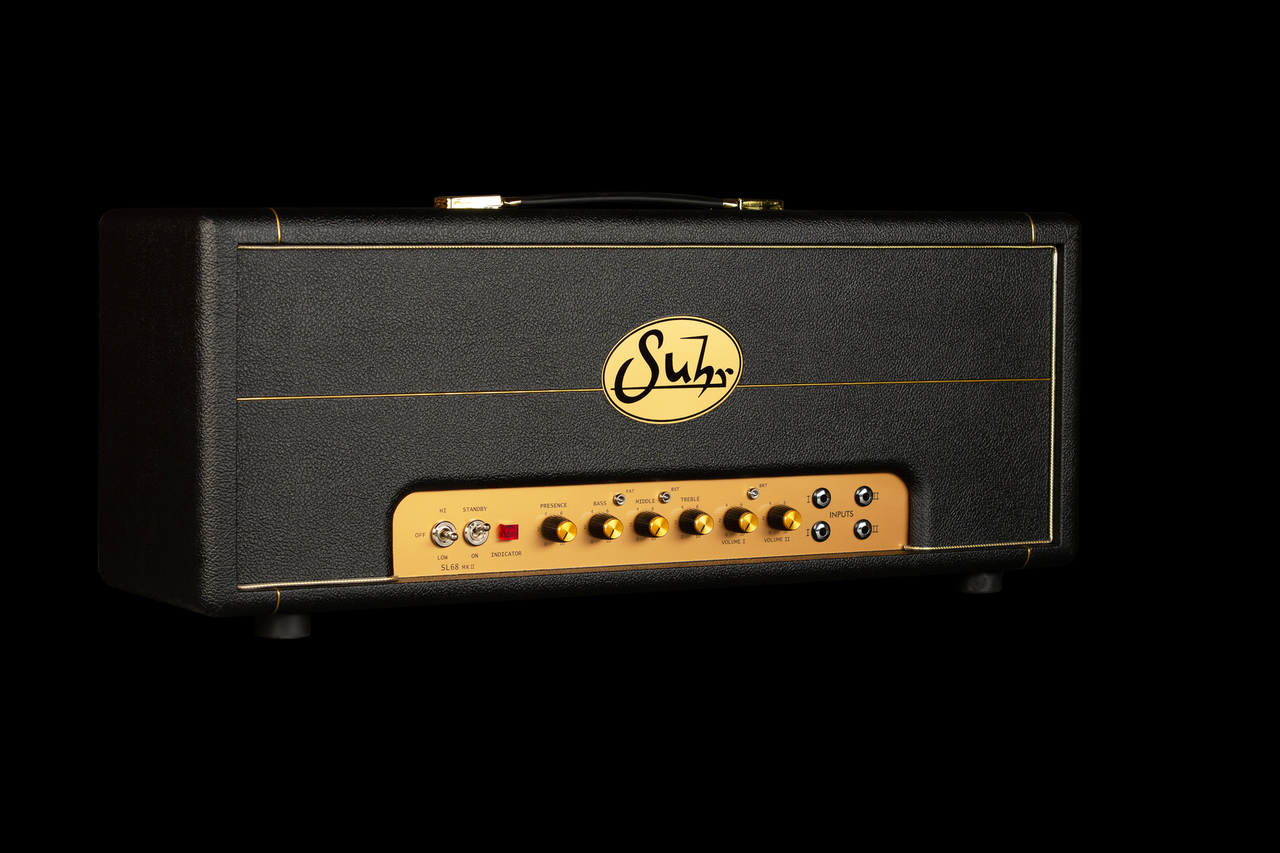

The SL68 MKII features two distinct channels with four individual inputs: Channel I (High Treble) for cutting Plexi bite, presence, and upper-midrange projection, and Channel II (Normal) for deep, resonant low end. Players can run directly into either channel or bridge Channels I and II with a short patch cable to blend both preamp voices for precise gain staging. Front panel controls include Volume I, Volume II, Treble, Middle, Bass, and Presence for intuitive, instantaneous sound shaping across any 2x12 or 4x12 cabinet setup.

Technical Specifications:

• Circuit Design: Point-to-point hand-wired Class A/B all-tube circuit
• Power Output: 100 Watts RMS
• Power Tubes: 4 x EL34 matched power tubes
• Preamp Tubes: 3 x 12AX7 preamp tubes

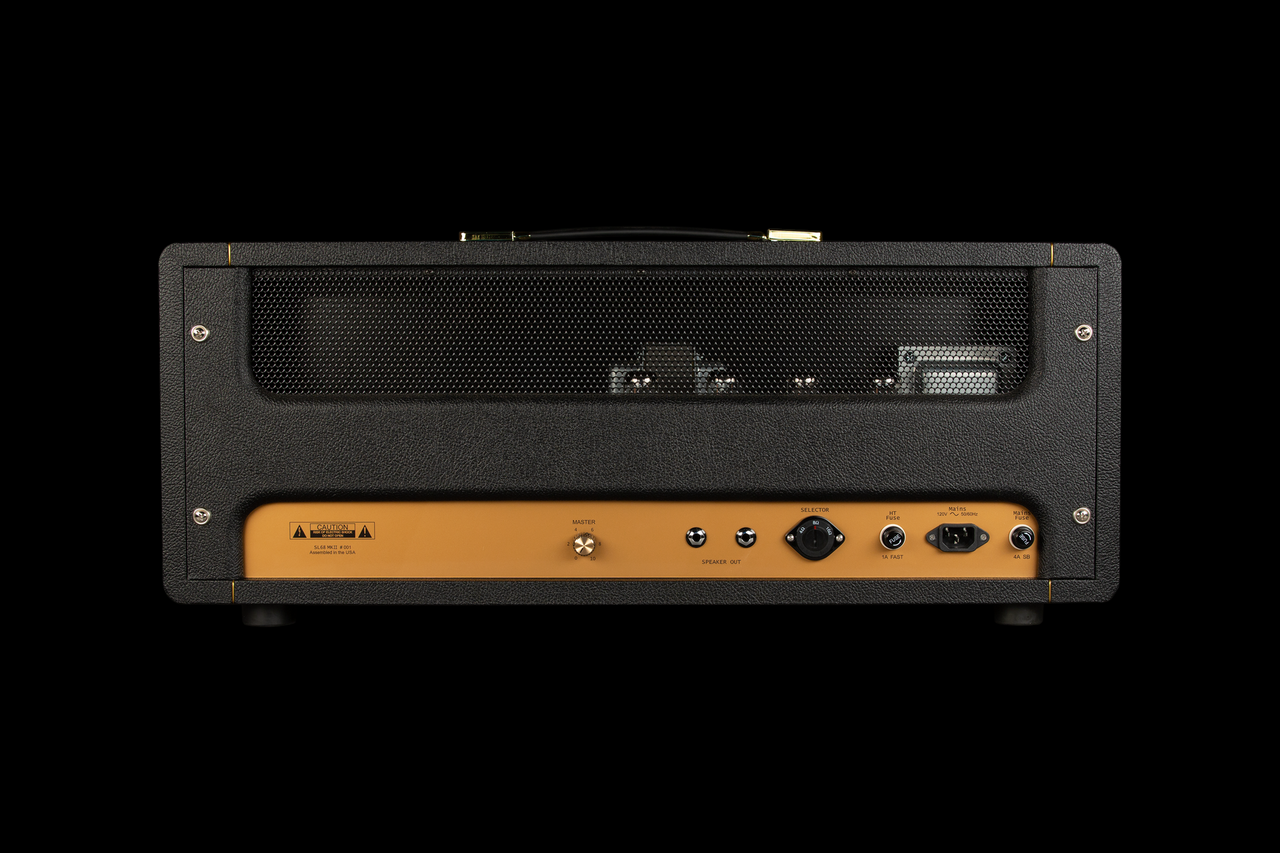

• Master Volume: Rear-panel Master Volume (PPIMV circuit with true-bypass feature)
• Channels: 2 Channels (Channel I / Channel II) with 4 inputs (High/Low sensitivity per channel)
• Controls: Volume I, Volume II, Treble, Middle, Bass, Presence
• Outputs: Dual speaker outputs with selectable impedance switch (4Ω / 8Ω / 16Ω)
• Transformers: Custom hand-wound power and output transformers
• Cabinet Construction: Resonant solid pine cabinet in Black Tolex with Tolex front panel
• Dimensions & Weight: 29" (W) x 11" (H) x 8.25" (D) | Weight: 47 lbs
• Origin: Hand-built in Lake Elsinore, California, USA

Sanctuary Expert Note:

If you need maximum clean headroom, massive low-end punch, and the iconic stadium-filling roar of a 100-watt 1968 Super Lead—but need a master volume that allows you to use it in modern venues—the Suhr SL68 MKII is the ultimate boutique head.
