The Ultimate Compact Command Center for Your Pedalboard
The MusicomLAB MTX-5 is a ultra-compact, powerful floor-based MIDI foot controller designed to seamlessly manage complex pedalboards and rack rigs without taking up valuable real estate[cite: 5]. Featuring 870 presets, extensive MIDI message capabilities, and highly customizable switch configurations, the MTX-5 brings total switching authority to your performance.
Why We Love It at The Guitar Sanctuary
Modern pedalboards demand maximum control in minimal space. The MTX-5 punch far above its weight class. Whether you are controlling multi-effects units like the Line 6 HX Stomp, switching presets on Strymon or Eventide pedals, or syncing delay tempos across your rig via MIDI Time Clock, the MTX-5 delivers effortless, latency-free automation.
Key Features & Utility
- Massive Preset Capacity: Organize up to 870 presets (290 banks x 3 presets) plus 1 global preset, organized into 870 songs and 64 sets of 56 songs for complete setlist management.
- Triple MIDI Outputs: Features one standard 5-pin DIN MIDI OUT and two 1/8" (3.5mm) TRS MIDI OUT ports, allowing you to control multiple TRS-MIDI pedals without needing an external MIDI splitter.

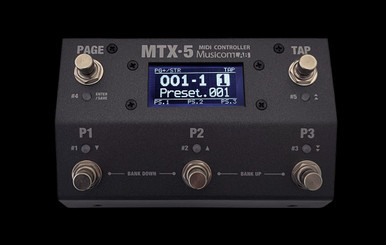

- Flexible Hardware Control: 3 primary footswitches with 3-color LEDs (Red, Blue, Purple), plus dedicated PAGE and TAP tempo switches. Access up to 8 customizable pages for Instant Access (IA) switch control, preset recall, or tempo adjustments.
- Expression & Switch Expansion: Two XPDL jacks support up to 2 expression pedals or 4 external footswitches for dynamic parameter expression.
- Advanced MIDI Specs: Transmits up to 16 MIDI messages (PC, CC, Note, SysEx) per preset, 12 MIDI messages per IA switch, and supports MIDI Time Clock transmission.
- Internal DIP Switches: Hardware DIP switches configure TRS MIDI OUT 2 & 3 for Tip Active, Ring Active, or Standard TRS MIDI compatibility across different pedal manufacturers.
- PC/Mac Editor Support: Easily backup, edit, and update firmware via USB connection.
Product Specifications
- Display: 128 x 64 Graphic LCD (White on Black)
- Power Requirements: 9V DC Center Negative, 100mA (Supports 9V isolated power, USB power, or Phantom power via 5-pin MIDI Pin 6/7)
- Dimensions: 6.3" (W) x 3.7" (D) x 2.5" (H) / 160mm x 93mm x 63mm
- Weight: 1.2 lbs / 550 g

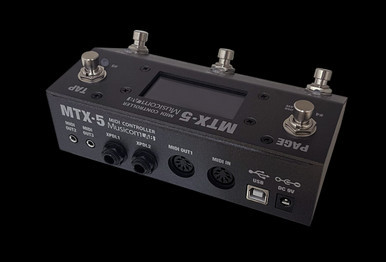

- Included Connections: 1x MIDI IN, 1x MIDI OUT (5-Pin), 2x MIDI OUT (1/8" TRS), 2x XPDL (1/4" TRS), USB-B Port
871 preset memory locations (290 banks of 3 presets, plus a Global Preset)
Create up to 870 songs
Organize the 870 songs in to 64 sets of 56 songs
Switches can be assigned to the user's preference.
2 expression pedals or 4 foot-switches (XPDL1/XPDL2)
3 MIDI OUT connectors (one standard MIDI connector and two 1/8 inch phone connectors)
16 MIDI messages (PC, CC, Note or SysEx) each preset
12 MIDI messages (PC, CC, Note or SysEx) each switch
MIDI Time Clock
80 MIDI System Exclusive slots
USB Connection to a PC or MAC
Graphic LCD for to show a lot of information
Easily copy presets, banks, songs and sets
Easily name presets, songs, sets, pages and switches
Heavy-duty footswitches
Powered by 9VDC(center negative) 100mA, phantom or USB
Dimensions : 160(W) x 93(D) x 63(H) mm
6.3(W) x 3.7(D) x 2.5(H) inches
Weight : 550 g / 1.2 lb
