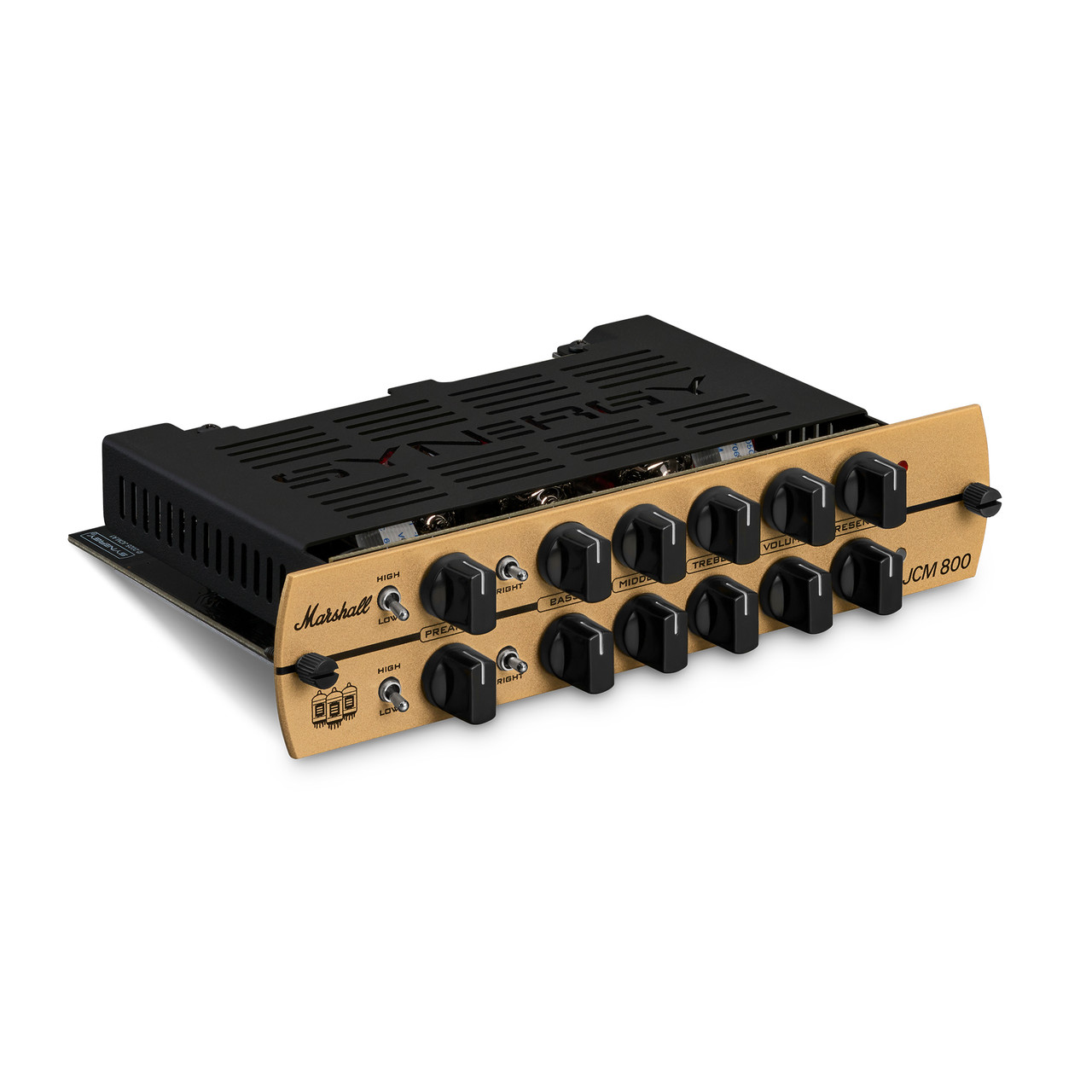

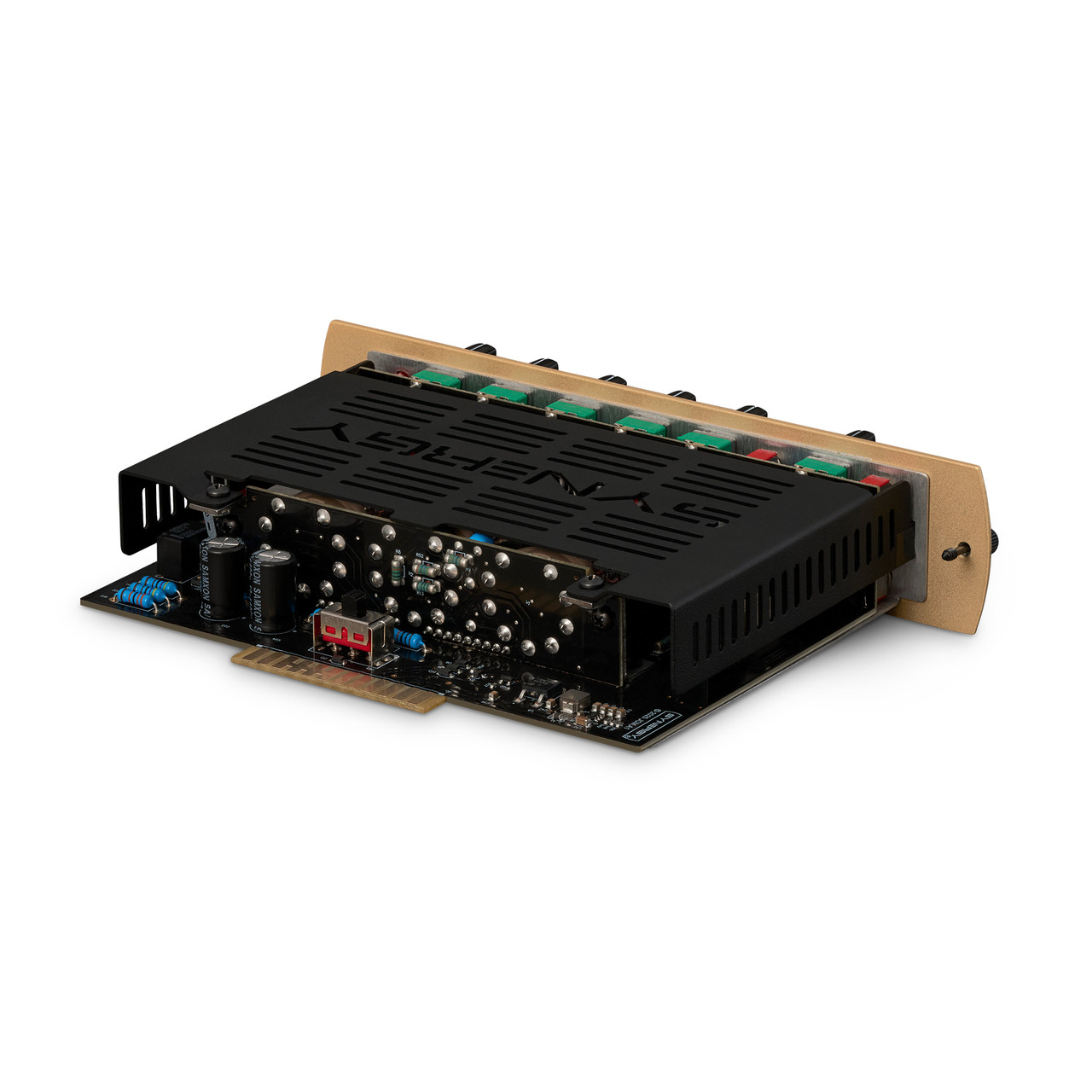

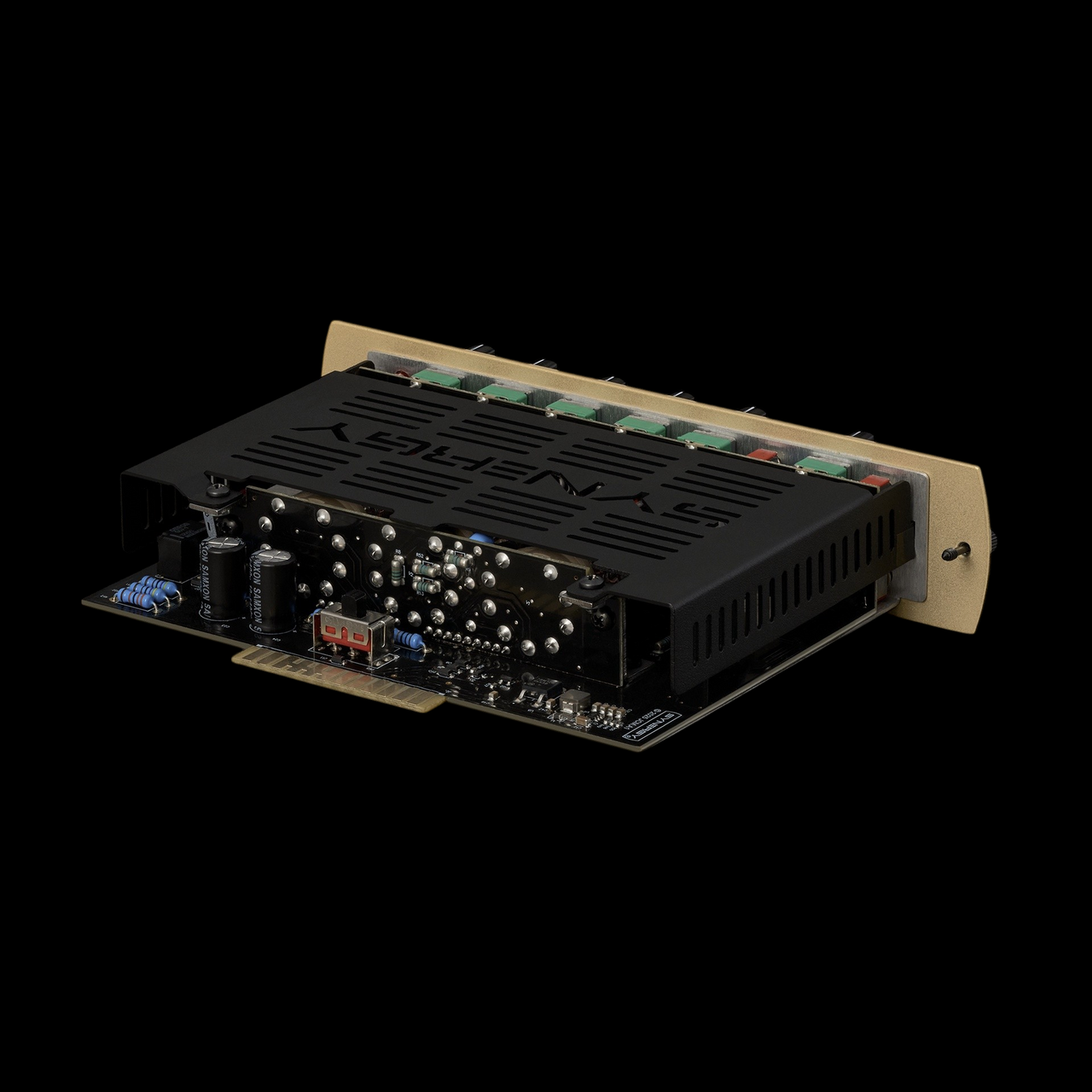

Synergy Marshall JCM 800 Preamp Module

Presenting the all new Synergy Marshall JCM 800 Preamp Module.

Few amplifiers have achieved the near mythic status of the Marshall JCM 800. When it first roared to life in the early 1980s, it didn’t just define an era - it ignited it. Kicking off a new generation of tones, the JCM 800 became the definitive voice of hard rock and heavy metal. Big, aggressive, and unmistakably British. It took the foundational crunch of the Plexi and added the gain, punch, and focus that powered a generation of guitar heroes.

Marshall JCM 800 2203 (100w) and 2204 (50w) circuits, with their single channel, cascaded gain stages, and signature midrange roar, delivered a level of authority and articulation that set them apart from anything before or since. It was the perfect balance of power and precision. For countless players, the JCM 800 isn’t just an amplifier - it is the amplifier. Now, Synergy and Marshall have teamed up once again to bring you, for the first time ever, this legend in a three-tube, dual-channel preamp module.

Utilizing Marshall’s original circuit design, the JCM 800 module delivers the raw energy, attack, and articulate overdrive of the iconic vertical-input 2203/2204 amplifiers. Whether you’re chasing the three-dimensional crunch of 80s rock or crushing tight gain for modern metal, the JCM 800 module gives you the legendary tonal experience that defined a generation.

DUAL-CHANNEL, THREE-TUBE PREAMP

Each of the JCM 800’s two identical channels feature independent Preamp, Bass, Middle, Treble, Presence, and Volume controls, giving you complete command over your gain structure and tonal response. From dynamic low-gain crunch to saturated high-gain sustain, the JCM 800 module delivers every nuance of the original amp’s voice. Independent Master Volume controls for each channel allow you to precisely balance rhythm and lead levels with all of the amp’s dynamic character and harmonic complexity.

THREE-TUBE MODULE WITH BUILT-IN 0-WATT POWERAMP - A SYNERGY FIRST

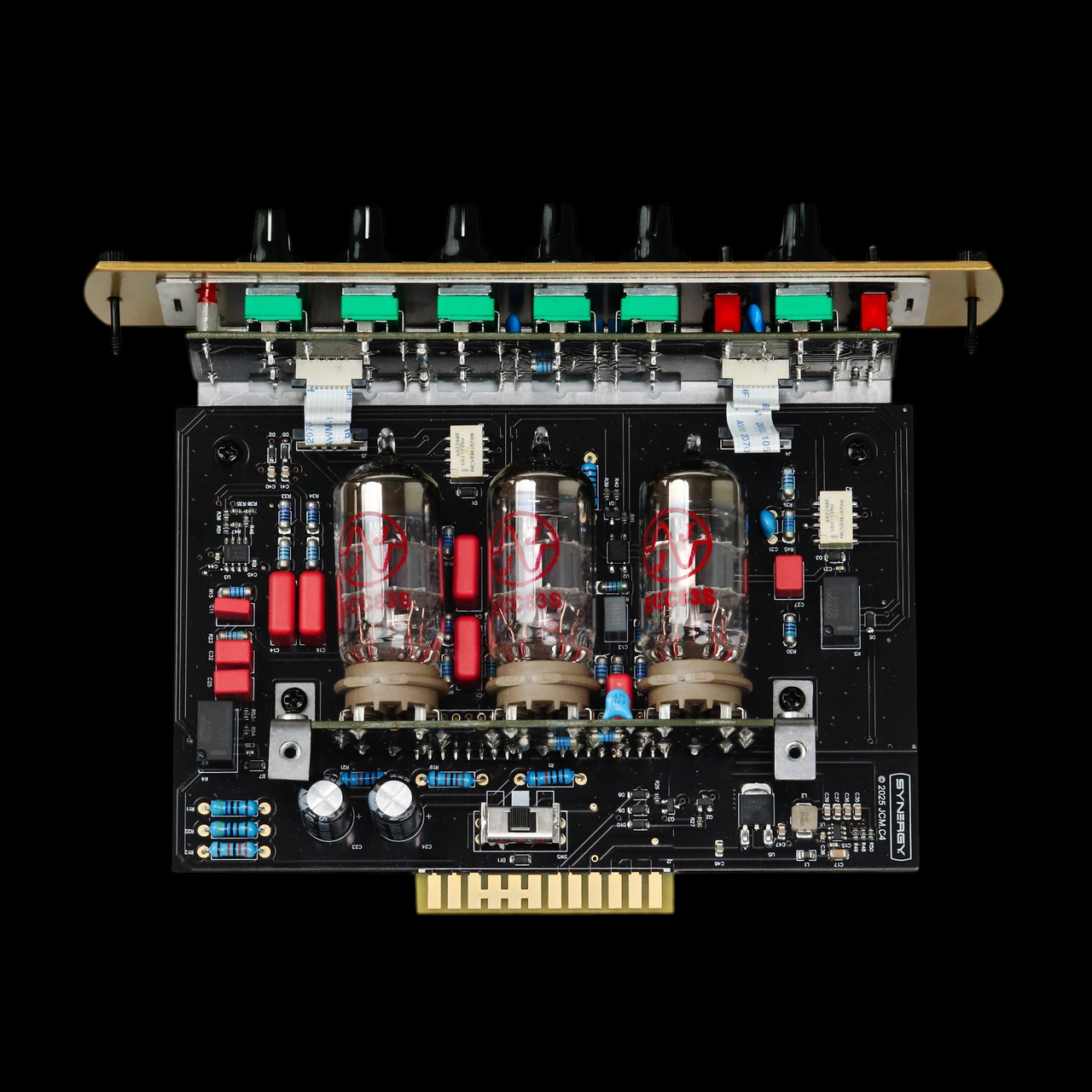

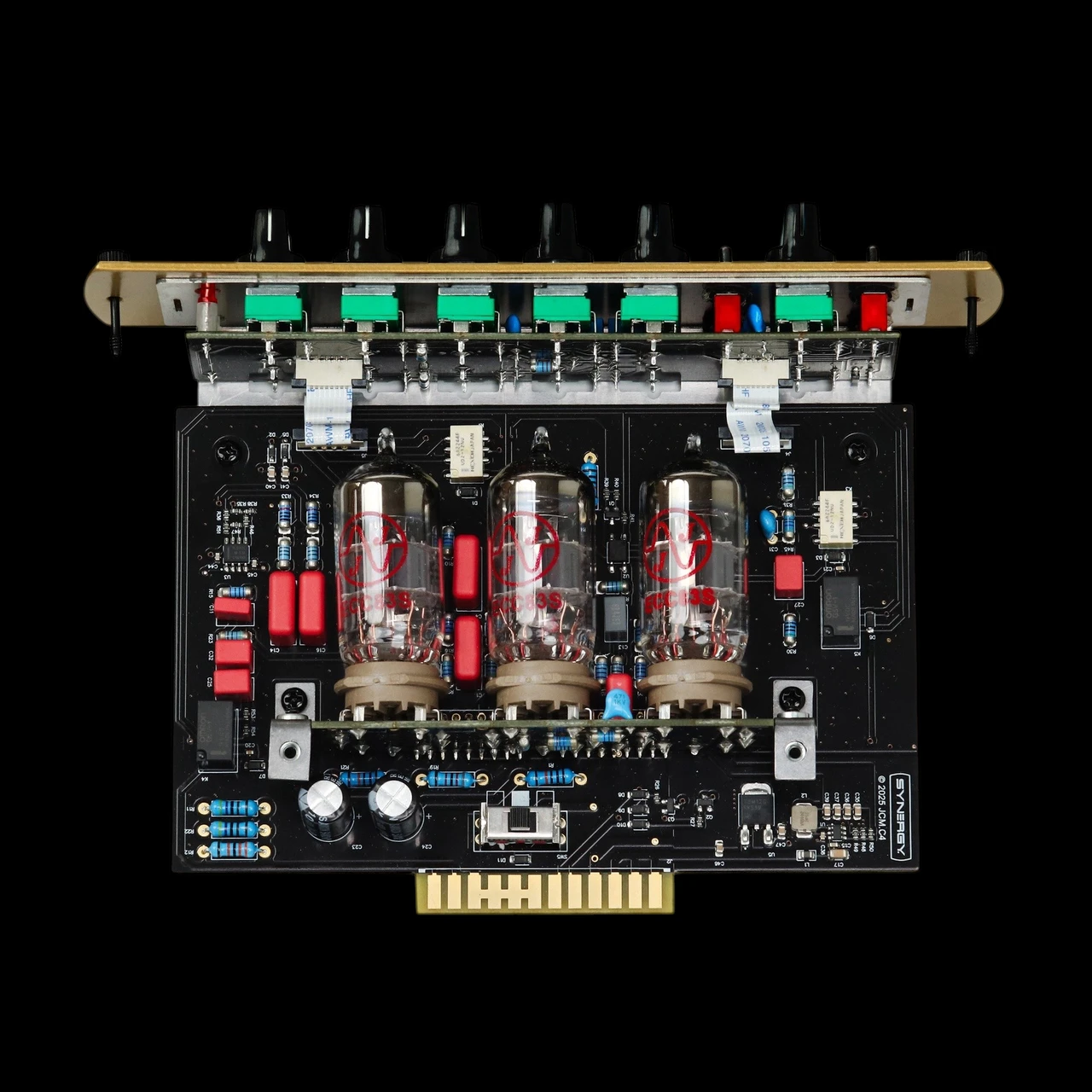

The JCM 800 module introduces Synergy’s revolutionary three-tube architecture - a first in modular preamp design. Beloved by generations of players, the original JCM 800 truly came alive when cranked, thanks to the magical interplay between its preamp and power amp stages. Synergy has now captured that same raw  energy and unmistakable feel in a compact, modular form. Two 12AX7s drive the preamp, while a third 12AX7 powers the built-in 0-watt amplifier and phase inverter.

With the JCM 800 module you get the sag, feel, and harmonic bloom of a fully cranked JCM 800 head - at any volume. The JCM 800 module delivers the authority, grit, and edge that made this amp an icon in rock history, while propelling Synergy’s modular platform into bold new sonic territory.

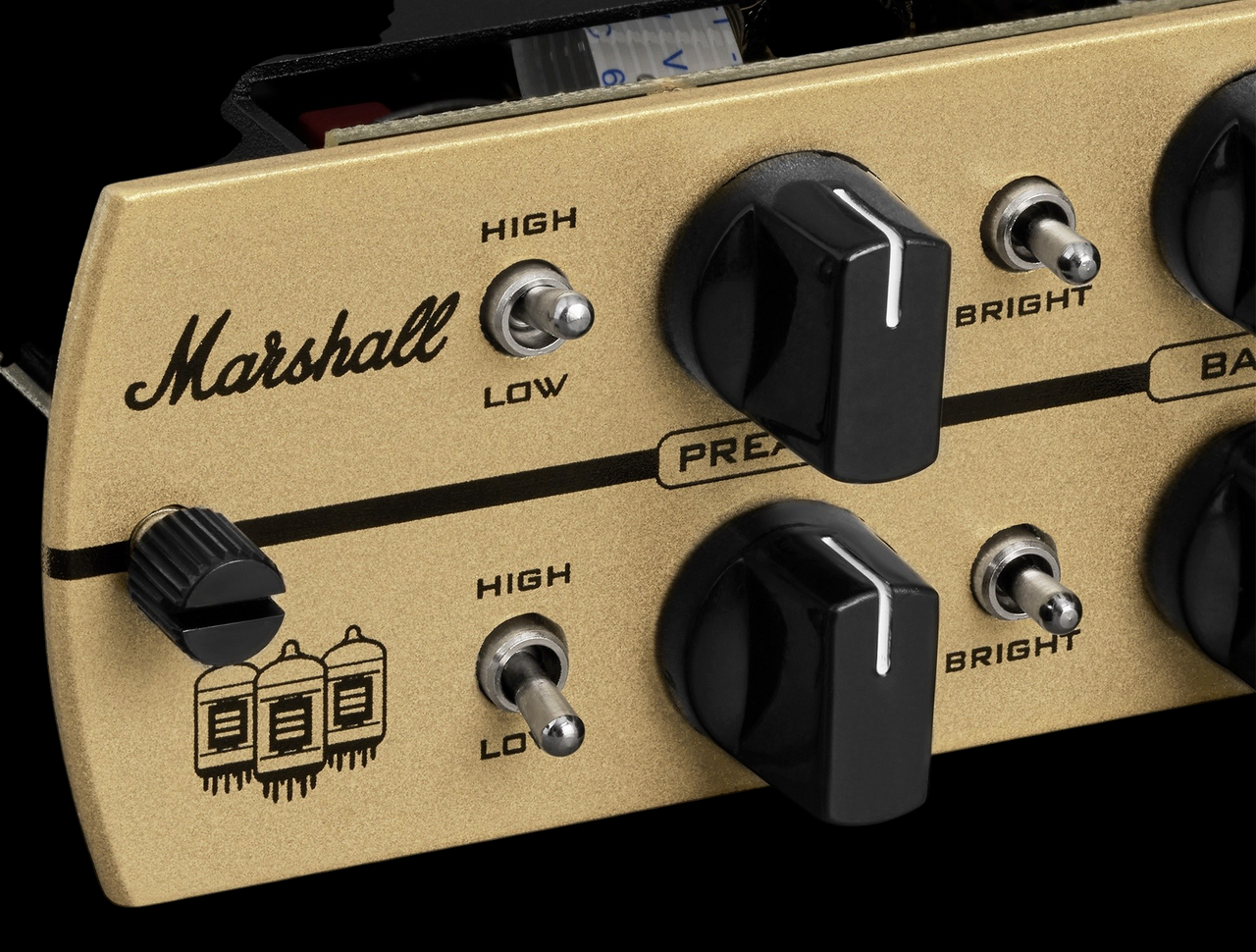

BRIGHT & HIGH/LOW INPUT SWITCHES

Expanding on the original amp design, the JCM 800 module provides additional flexibility with two key features:

Bright Switch: A three-position toggle switch selects between two bright cap values or removes it entirely. This lets you tailor the attack and clarity of the preamp stage - from tight and biting to warm and smooth. It’s just like modding the bright cap on a vintage 2203, without touching a soldering iron.

High/Low Input Switch: Faithfully replicates the dual input jacks found on the original JCM 800, toggling between the high-gain “Lead” input and the lower-gain “Normal” input. This lets you instantly move from punchy, classic crunch to saturated modern drive.

CATHODE SELECT FUNCTION

The Marshall JCM 800 module features a three-position switch on the PCB, which allows you to configure the input tube bass response to match the original circuit of the selected module. These settings affect the feel and tightness. Each amp designer has a specific combination of components that make up their input tube circuit.

Synergy has selected the three most popular combinations which you can access with this switch:

• Position 1 (1.5K resistor and 22uf capacitor)
• Position 2 (2.7K resistor and .68uf capacitor)
• Position 3 (1.8K resistor and 1uf capacitor)

Of course, you can experiment and try any position to see which you prefer. The JCM 800 module is preset to the center position (2.7K resistor and .68uf capacitor).
