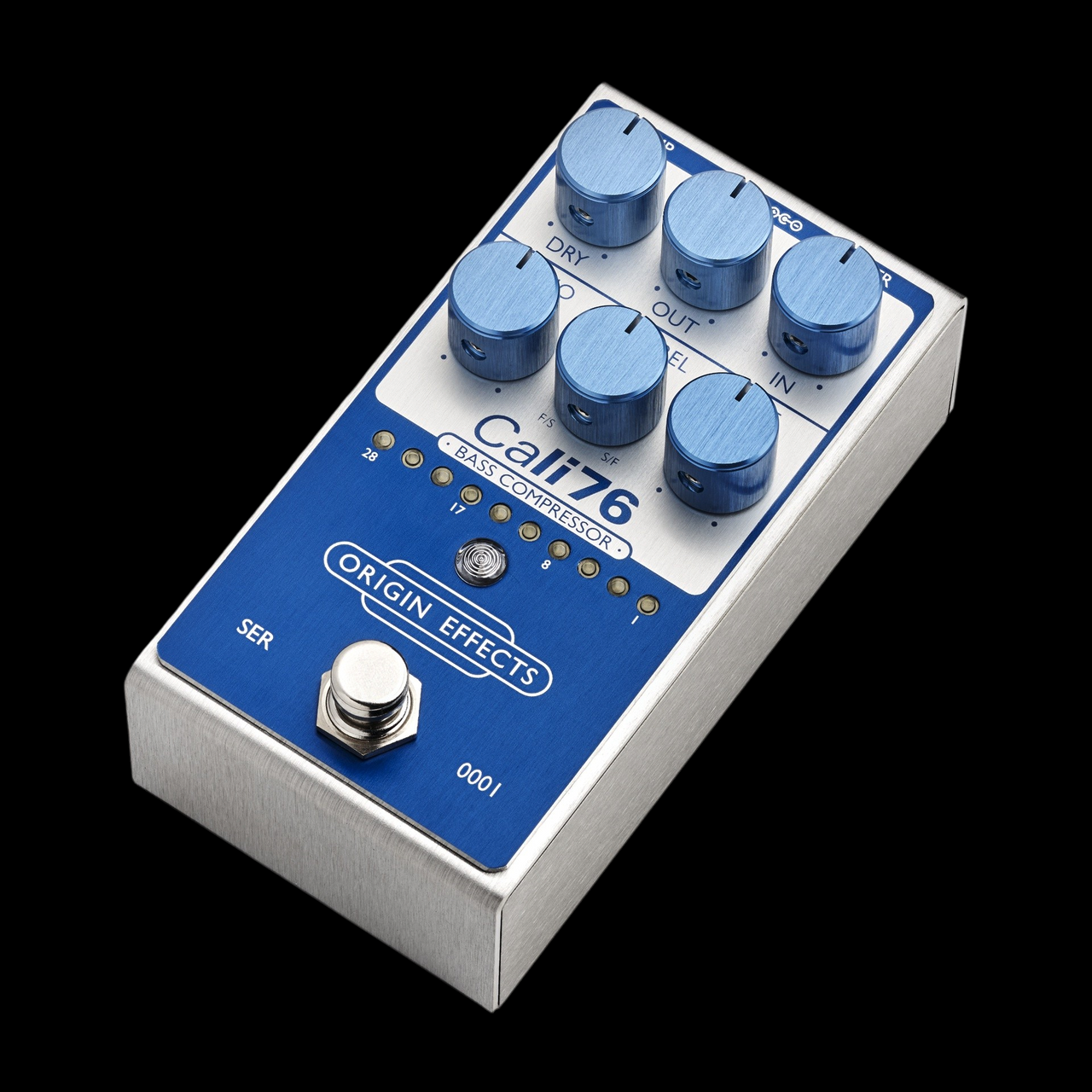

Origin Effects Cali76 Bass Compressor Super Vintage Blue

Studio-Grade 1176 FET Compression in a Custom Super Vintage Blue Aesthetic

The Origin Effects Cali76 Bass Compressor Super Vintage Blue Edition delivers world-class, studio-grade FET compression directly to your pedalboard, finished in a striking vintage blue coat designed to perfectly match the iconic styling of the BASSRIG Super Vintage preamp. Inspired by the legendary Urei® 1176® studio outboard compressor found on generations of classic albums, this pedal utilizes an uncompromising, 100% all-analog discrete circuit pipeline to bring legendary punch, transparency, and high-definition dynamic control directly to the modern bassist.

This edition moves beyond standard utility boxes, acting as an elite tone-shaping tool. It excels at smoothing out transient peaks, maximizing clean sustain, and imparting an expensive, "produced" character to your bass lines, regardless of your playing style or genre.

Advanced Dynamic Control and High-Pass Sidechain Filtering

Unlike standard guitar compressors that swallow your low-end notes, the Cali76 Bass Compressor features a full array of studio-style controls, highlighted by a dedicated HPF (High-Pass Filter) knob. This control applies a variable filter to the internal sidechain circuit (ranging from 20Hz up to 350Hz), preventing heavy low-frequency energy from triggering the compression path prematurely. This allows the lower strings to retain their natural, explosive dynamic power while the pedal focuses on compressing and tightening up the mid-range and top-end transients of your pick or pop attack.

The fully variable Attack, Release, and Ratio knobs allow you to seamlessly shift from transparent peak limiting to a percussive, lively smash. Meanwhile, the integrated Dry blend knob unlocks true parallel compression, letting you mix your uncompressed direct bass signal back in with the squashed signal to retain transient attack and organic touch response.

Unrivaled Headroom and Real-Time Visual Monitoring

Engineered for low noise and superior audio fidelity, the Cali76 Bass Compressor converts a standard 9VDC power source internally up to an ultra-high 24V rail. This significant increase in clean internal voltage gives the pedal immense headroom, enabling it to process high-output active preamps, five-string bass transients, or line-level studio track gear without clipping. To remove any guesswork on stage or in the control room, a responsive, front-facing 10-LED gain reduction meter bar graph provides absolute real-time visual tracking of exactly how much—and how fast—your signal is being compressed.

Product Intelligence & Core Attributes

• Best For: Classic Rock wall-of-sound tracking, vintage stadium bass tones, dynamic pick-playing, and driving low-end parallel mixes.
• Tone Profile: Warm, punchy, authoritative, mid-forward, and beautifully polished.
• Compared To: Studio outboard Urei® 1176® gear, Empress Bass Compressor, SolidGoldFX Horizon.
• Country of Origin: Designed and hand-assembled in England.

Sanctuary Expert Note: The Super Vintage Blue edition is a massive favorite at the shop for anyone chasing that historic '70s stadium rock power. When stacked alongside an SVT-style preamp or a big tube head, this compressor behaves exactly like a world-class studio optical/FET leveling amplifier, adding weight, glue, and rock-solid consistency to every note you play.

Technical Specifications Matrix

• Circuit Architecture: 100% all-analog discrete signal path inspired by the iconic studio Urei® 1176® FET compressor.
• Cosmetic Variant: Super Vintage Blue Edition, color-matched to premium mid-70s stadium bass stack cosmetics.
• Sidechain High-Pass Filter: Variable HPF control (20Hz to 350Hz) to preserve low-frequency dynamic definition.
• Parallel Compression Control: Independent Dry blend knob to mix uncompressed presence with sustained, compressed signals.
• Gain Reduction Tracking: High-visibility 10-LED bar graph meter providing immediate visual performance feedback.
• Internal Headroom Enhancement: Converts incoming 9V power up to 24V internally for pristine clean headroom tracking.
• Bypass Topology: Premium high-quality buffered bypass design engineered to retain signal integrity over long cable runs.
• Enclosure & Build: Compact, heavy-duty stainless steel housing hand-assembled and individually inspected in England.
