EarthQuaker Devices Dispatch Master Delay & Reverb V3

Introducing the Dispatch Master by EarthQuaker Devices! This one features a 3-Tone Custom Color.

The Dispatch Master is your perfect ambience in a box. With lush digital delay blending perfectly with the reverb, straight-forward controls, and new "hold" function, what more could you ask for in a combo pedal?

To Use Both Effects at the Same Time, Simply Adjust all Controls to Taste:

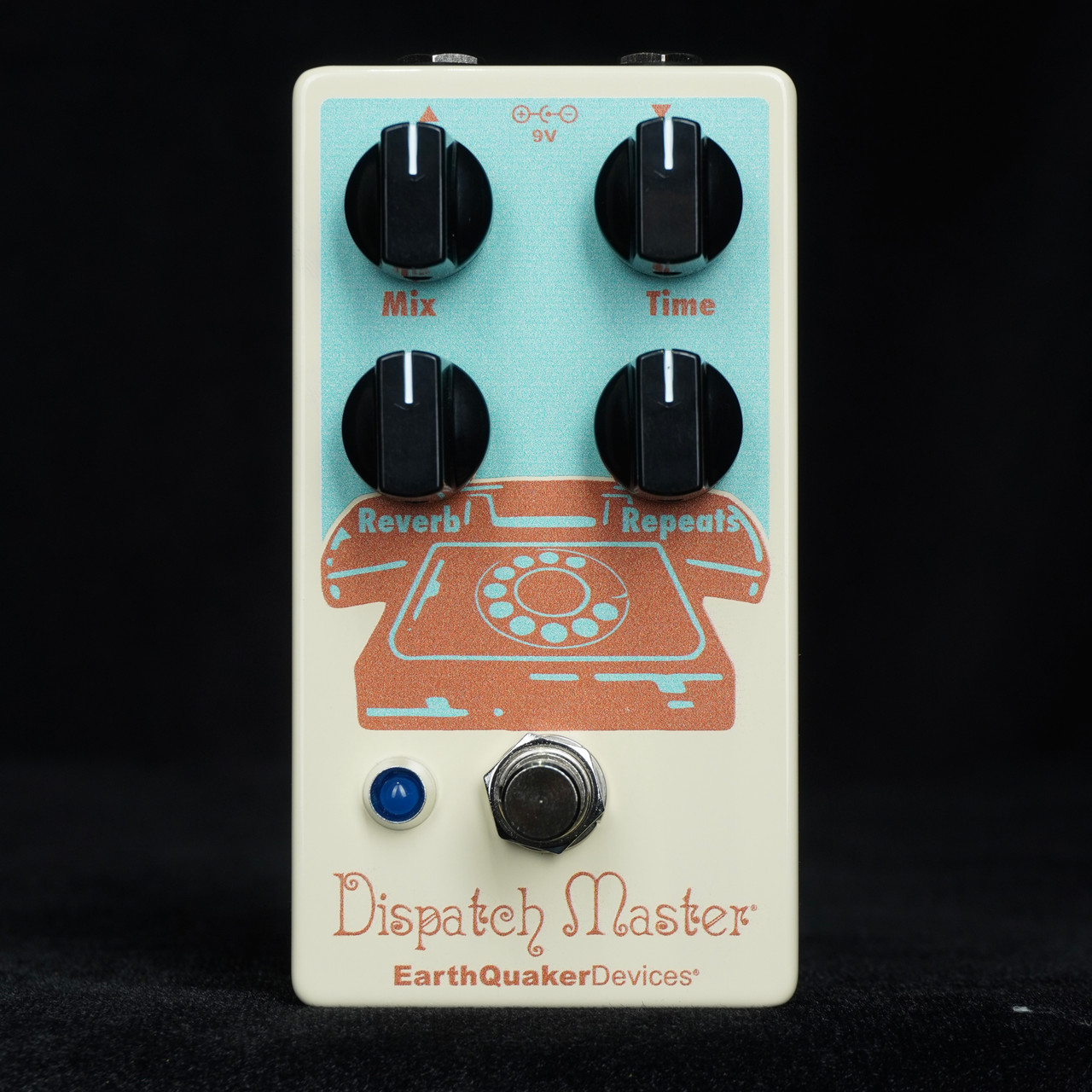

The Mix (1) control is a wet/dry blend that adjusts the overall level of the affected signal.

Time (2) sets the delay time from 0ms to 1500ms (1.5 seconds).

Reverb (3) controls the amount of reverb. Counterclockwise is less reverb, clockwise is more reverb.

Repeats (4) controls the regeneration of the delay signal. When the Repeats control is set to maximum, you’ll get infinite repeats without runaway self-oscillation, which makes it great for creating drones, dialing in the ultimate post-rock guitar sound without feedback, or just having fun.

To Use the Dispatch Master as a Delay Only:


Turn the Reverb control all the way down


Adjust the Time, Repeats, and Mix controls to taste


To Use the Dispatch Master as a Reverb Only:


Turn the Time and Repeats controls all the way down


Adjust the Reverb and Mix controls to taste

THIS IS IMPORTANT! In Reverb-only mode, the Repeats control has a secondary function. It can be used to adjust the decay, depth, and tonal quality of the reverb! Turn it up for more dynamics and a thicker tone.

Dimensions

4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw

78 mA

Input Impedance

1 MΩ

Output Impedance

<1 kΩ

Flexi-Switch® Technology

This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

• For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

• For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

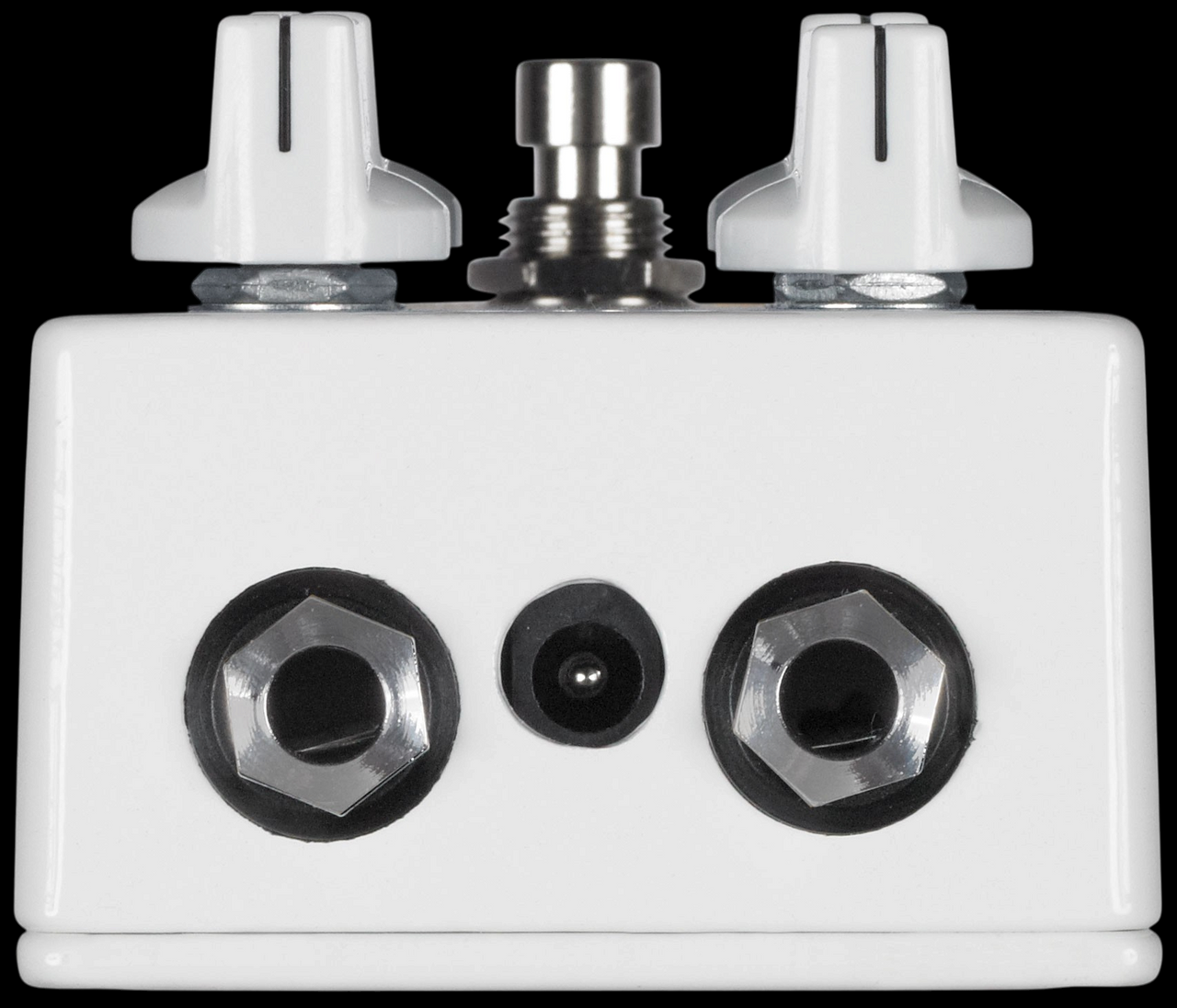

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
