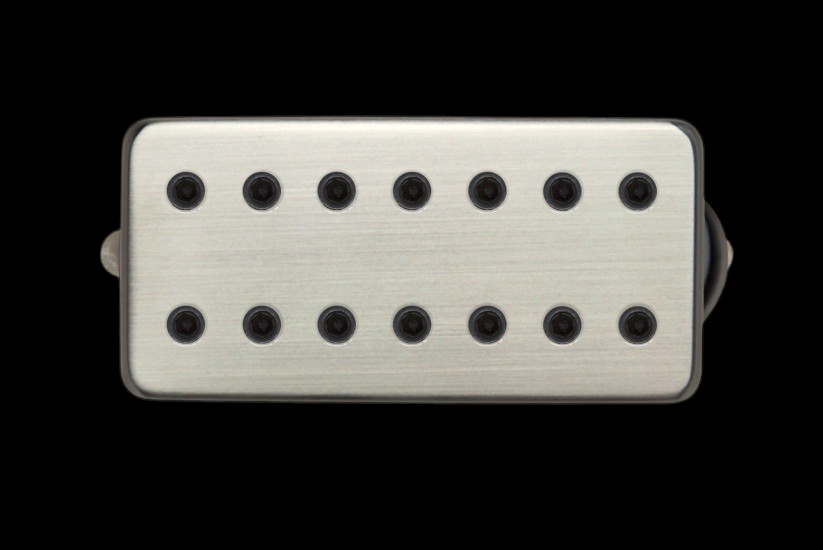

Introducing the Bare Knuckle Juggernaut Misha Mansoor Signature 7 string humbucker set, this one with raw nickel covers and black bolts.
This Set includes both the matching Neck and Bridge Pickups.
"The Bare Knuckle Juggernaut encapsulates everything that I look for in a pickup in a ground breaking way. I can finally have the tightness and attack of a ceramic with the dynamics and musical nature of an Alnico. I can proudly call the Bare Knuckle 'Juggernaut' my signature pickup set."- Misha Mansoor.
The Juggernaut is the tonal engine behind all of the Periphery songs with Misha's riffs at their heart. With a pummelling mid range push and tight articulate low end, these pickups are at home where ever gain is found. The cleans don't suffer at all though, and remain bright and balanced for long intricate clean breaks in your heaviest songs.
Whether it's crushing rhythm tones, fluid solo tone or massive clean soundscapes that you want to create, the Juggernaut humbuckers deliver on every level. The Juggernaut is Periphery guitarist Misha Mansoor’s signature humbucker, and the pickup has been designed with Misha’s progressive playing style in mind. Along with a massive sound, the pickup has an optional distinctive 'bulb' design cover etch, which adds a further dimension to an already unique pickup.
The Juggernaut humbucker is designed with symmetrically hand-wound twin screw coils and has a unique combination of massive Alnico V and ceramic VIII flankers for its engine in the bridge and a custom size Alnico V in the neck. Bass response is big and focused with lots of weight in the mids for the ultimate in definition through complex extended chord voicings. High end is rich and vocal with all of the articulation and dynamic control that Misha demands for his progressive playing style.
"The pickups are full and musical at all times even though they are super tight and can turn very aggressive if you pick hard."- Misha Mansoor.
APPLICATIONS
Progressive Rock & Metal, Thrash, Death Metal, Punk, Hardcore, Hard Rock, Metalcore and Extreme Metal styles.
SUITABILITY
Any solid-body; heavily detuned and extended range guitars; any guitar needing more control in the bass and increased focus in the mids with singing high end.
juggernaut Bridge
Strings: 7
Top Bobbin Colour: black
Bottom Bobbin Colour: black
Cover: brushed nickel
Pole Screws: black bolt
Etch: None
Covered Holes: No
Conductors: four
DC Resistance: 13.3 kΩ Magnet: Alnico ceramic mix
juggernaut Neck
Strings: 7
Top Bobbin Colour: black
Bottom Bobbin Colour: black
Cover: brushed nickel
Pole Screws: black bolt
Etch: None
Covered Holes: No
Conductors: four
DC Resistance: 8.9 kΩ Magnet: Alnico 5
