The Multi-Channel Studio Workhorse and Modern Tone Benchmark
The Mesa/Boogie Mark V 90-Watt Head represents the culmination of over 40 years of Randall Smith’s iconic Mark Series circuit evolution. Housing three fully independent channels with nine distinct mode voicings, the Mark V delivers the legendary clean, crunch, and high-gain tones of the Mark I, Mark II-C+, and Mark IV alongside modern high-gain architectures in a single, tour-grade chassis.
Powered by a four-6L6 tube power section utilizing Mesa’s patented Simul-Class™ Power (Multi-Watt™ Patent 7,602,927), each channel can be independently assigned to 10 Watts (Class A Triode), 45 Watts (Class A/B Pentode), or 90 Watts (Simul-Class blending Class A and Class A/B). Combined with Mesa's iconic 5-Band Graphic EQ, assignable preset depth, all-tube long-spring reverb, and a tube-buffered effects loop, the Mark V provides absolute tonal authority for home studios, recording sessions, and live stages.
The Sanctuary Perspective: "While the Mark VII is the current flagship in the Mesa lineup, the Mark V 90W remains the absolute sweet spot for tone purists and studio players. Its ability to drop down to 10W Class A per channel gives it a unique power-section feel and sag that gigging musicians and session pros rely on. This pre-owned head (SN: MKV-006578) is in Excellent condition and includes its original footswitch, cable, and fitted cover."
Technical Specifications & Operational Attributes:
- Model: Mesa/Boogie Mark V™ Head (Black Bronco)
- Serial Number: MKV-006578 (Actual unit pictured)
- Build Location: Handcrafted in Petaluma, California
- Power Output: Multi-Watt™ 10, 45, or 90 Watts (Channel Assignable)
- Power Amp Topology: Simul-Class™ Power with 4x Mesa 6L6 Power Tubes (Bias select switch for EL-34 option)
- Preamp Tubes: 7x Mesa 12AX7 Preamp Tubes
- Rectifier: Silicon Diodes (1x 5U4 Rectifier Tube operation dependent on mode)
- Channel Array: 3 Fully Independent Channels with 9 Style Modes:
- Channel 1: Clean, Fat, or Tweed
- Channel 2: Edge, Crunch, or Mark I™
- Channel 3: Mark II-C+™, Mark IV™, or Extreme
- Tone Shaping: Footswitchable 5-Band Graphic EQ (Assign per channel, Footswitchable, or Off)
- Reverb: Footswitchable All-Tube Long-Spring Reverb with Independent Channel Controls
- Effects Loop: Tube-Buffered FX Loop with Hard Bypass option
- Output Controls: Solo Level Control, Master Volume, and Full/Variac Power Switch
- Speaker Outputs: Two 8-Ohm and Two 4-Ohm jacks
- Included Accessories: Original Multi-Button Footswitch, Footswitch Cable, and Fitted Slipcover
- Chassis Dimensions: 9 1/4” H x 18 3/4” W x 10 7/8” D (40 lbs.)
- Condition Note: Pre-Owned (Excellent working and cosmetic condition; fully bench-tested by our staff)
This preowned Mesa Boogie Mark V Head in Black is in excellent condition, with the original cover, footswitch, and footswitch cable.

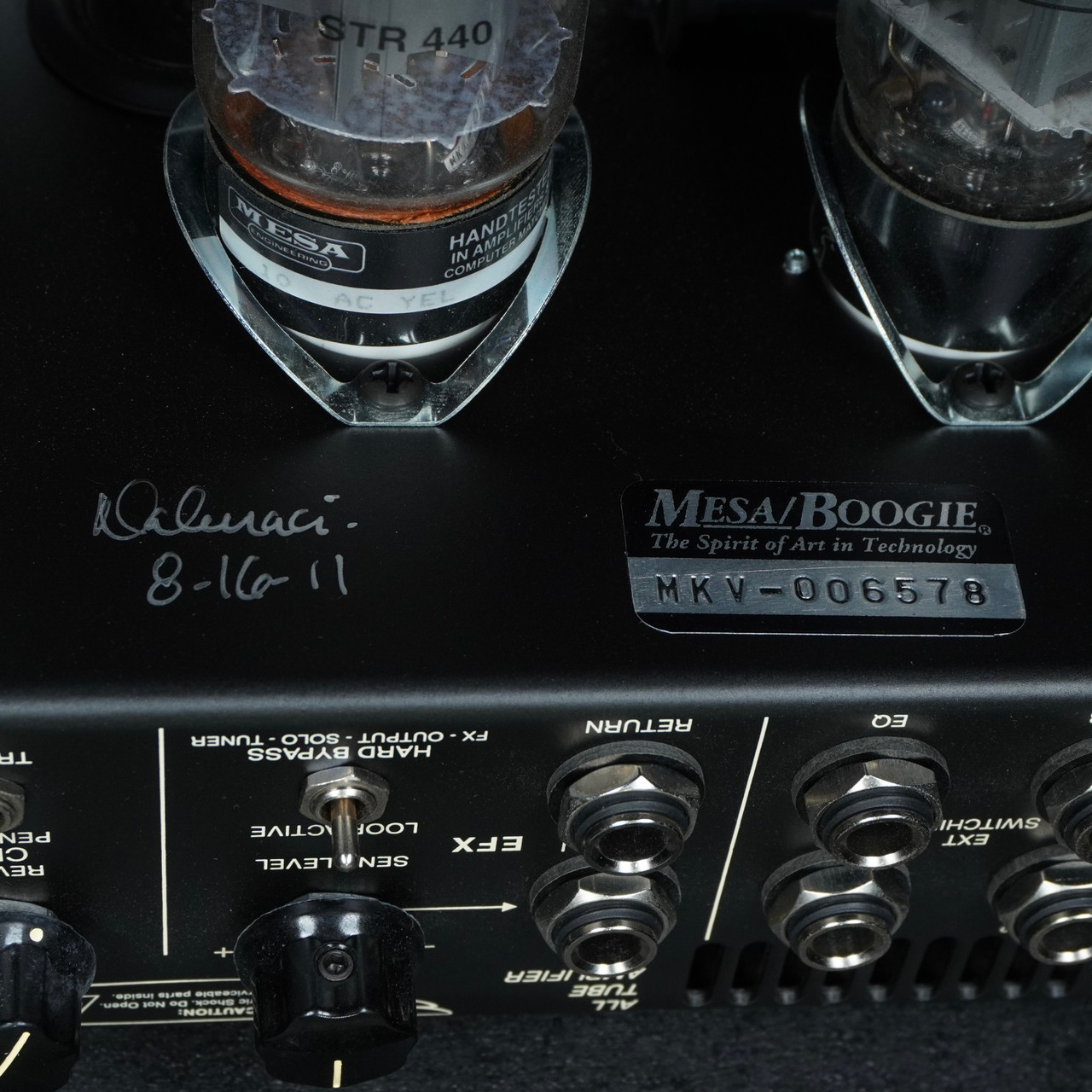

Photos are of the actual amp for sale, SN MKV-006578.
GENERAL INFORMATION
MODEL: Mark VII™ Head
PRODUCT SERIES: Mark Series
BUILD LOCATION: Built In Petaluma, CA, with the World’s Finest Materials
QUICK OVERVIEW
WATTAGE: Multi-Watt™ 25, 45, or 90 (Channel Assignable)
POWER TUBE TYPE: 4x Mesa 6L6 (or EL-34)
CHANNELS & MODES: 3 Channels / 9 Modes
MODE VOICINGS/STYLES:
Ch. 1 = Clean, Fat, or Crunch
Ch. 2 = Fat, Crunch, or Mark VII™
Ch. 3 = Mark IIB™, Mark IIC+™, or Mark IV™
GRAPHIC EQ / REVERB / FX / SOLO: Graphic EQ, Reverb, FX Loop, CabClone IR
FOOTSWITCHABLE FUNCTIONS: Ch. 1, 2, 3, Reverb, FX Loop, & Graphic EQ
WEIGHT: 40 Lbs. / 18.14 kg.
DIMENSIONS: 9 1/4” H x 18 3/4” W x 10 7/8” D 23.50 cm H x 47.63 cm W x 27.62 cm D
AMPLIFIER FEATURES
AMP TYPE: Tube
CHASSIS MATERIAL: Aluminum
RECTIFIER TYPE: Silicon Diodes
SPECIFICATIONS:
PREAMP TUBES: 5x Mesa 12AX7
POWER AMP TUBES: 4x Mesa 6L6 (or EL-34)
BIAS SWITCH FOR ALTERNATE POWER TUBE TYPES: Bias Select for 6L6 or EL-34
MAINTENANCE FREE FIXED BIAS: Yes
WATTAGE(S) QUICK REFERENCE (SEE POWER AMP DETAILS FOR MORE INFO): 25, 45, or 90 Watts - Channel Assignable - See Power Amp Details for more information
POWER AMP DETAILS (CLASS & WATTAGE): MESA/Boogie’s exclusive Simul-Class™ Power Amp featuring Multi-Watt™ (Patent 7,602,927) with Incremental Wattage Reduction (Patent 9,917,560) which provide three power and two operating-class options that are channel assignable via 25/45/90 Watt Power Switches: Choose 2 power tubes operating in Class A Triode, producing 25 Watts - 2 tubes running in Class A Pentode, producing 45 Watts, or 4 tubes running in MESA/Boogie’s legendary Simul-Class Power that blends the best of Class A and Class A/B simultaneously to produce 90 Watts of pure tonal magic
CONVECTION OR FAN COOLING: Fan Cooled
NUMBER OF FOOTSWITCHABLE CHANNELS (OR MODES): Three Channels
NUMBER OF STYLE MODES: Nine
NUMBER OF STYLE MODES PER CHANNEL: Three
TYPES OF STYLE MODES PER CHANNEL:
Ch. 1 = Clean, Fat, or Crunch
Ch. 2 = Fat, Crunch, or Mark VII™
Ch. 3 = Mark IIB™, Mark IIC+™, or Mark IV™
CHANNEL CONTROLS: Each Channel features: Independent 3-Position Style Mode Switch, Graphic EQ Assignment Switch (On, Off or Footswitchable), Patented Watt Multi-Watt™ 90/45/25 Power Amp Switch, Gain, Treble, Mid, Bass, Presence, & Master Controls, Reverb (Footswitchable) and an 8-Position CabClone IR Select Control (back-panel)
GRAPHIC EQ AND/OR CONTOUR: Selectable 5-Band Graphic EQ (Footswitchable, Channel Assignable or Off)
REVERB / EFFECTS & BYPASS OPTIONS: Footswitchable, All-Tube, Long Spring Reverb with Independent Channel Controls
EFFECTS LOOP & BYPASS OPTIONS Tube-Buffered FX Loop: (Footswitchable)
EXTERNAL SWITCHING JACK OPTIONS AND/OR MIDI MIDI: Switchable/Programmable via Control Change and Program Change messages, with 256 Preset Location (MIDI IN, MIDI Thru/Out, MIDI Channel, & Store Switches) – Controls Channels 1, 2, 3, Reverb, FX Loop, & Graphic EQ
SPEAKER OUTPUTS: Two 8 Ohm and Two 4 Ohm
CABINET SIMULATION - DIRECT LIVE/RECORDING OUTPUT: Built-in, channel assignable, MESA CabClone™ IR Cab Simulator featuring 8 MESA Cabinet IRs, USB Connection for IR transfers, Internal Amp Load for cabinet-free use, Input Level Control, IR Balanced XLR Direct Output, (Dry) Line Output (Uncompensated, +4db Direct Line Output for external cab sim/IR use, Re-Amping, etc.), Headphone Output, IR Output Level Control & Ground/Lift Switch
INTERNAL AMP LOAD (FOR SPEAKER-LESS PERFORMANCE): Yes (see Cabinet Simulation for more information)
HEADPHONE OUTPUT: Yes (see Cabinet Simulation for more information)
ACCESSORIES
FOOTSWITCH: Included - 3x3 - 6 Button Footswitch (Bottom Row: Ch. 1, Ch. 2, & Ch. 3 - Top Row: Reverb, FX Loop, & Graphic EQ)
SLIPCOVER: Included - Fitted Slipcover
CABINET FEATURES
CABINET MATERIAL: Marine Grade, Baltic Birch
STANDARD FINISH OPTIONS (no extra cost): Black Bronco Vinyl, Black Jute Grille, Black Handle & Corners
WEIGHT & DIMENSIONS
WEIGHT: 40 Lbs. / 18.14 kg.
HEIGHT: 9 1/4” / 23.50 cm
WIDTH: 18 3/4” / 47.63 cm
DEPTH: 10 7/8” / 27.62 cm
