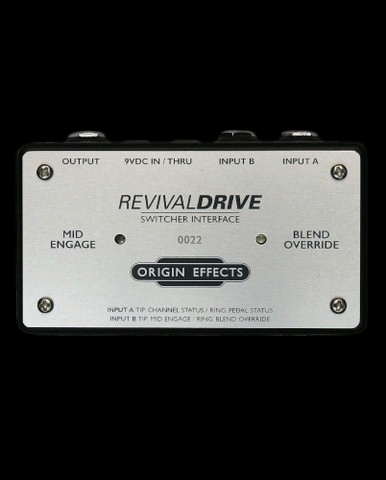

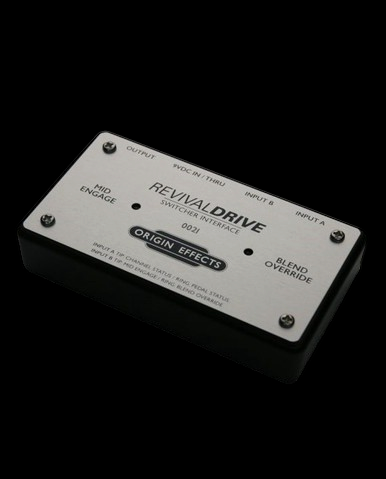

Origin Effects Switcher Interface for RevivalDRIVE Pedals

Seamlessly Automate Your RevivalDRIVE with Your Master Loop Switcher

The Origin Effects Switcher Interface is the ultimate rig integration solution for players looking to incorporate the uncompromising, dual-channel amp tones of the flagship RevivalDRIVE into a fully automated, programmable pedalboard setup. While the full-size RevivalDRIVE offers unparalleled analog tone-shaping, its complex internal switching circuitry requires a specialized control language. This compact, intelligent interface bridges that gap, allowing your master effects switcher to take total command of your drive routing via standard latching control switch jacks.

Convert Latching Presets to Momentary Control Commands

Modern programmable pedalboard brains like the GigRig G2/G3, Boss ES-8/ES-5, or RJM Mastermind use standard latching switches to change loops. However, the RevivalDRIVE’s internal brain relies on a highly sophisticated mix of latching and short momentary pulses. The Switcher Interface solves this technical friction by accepting standard remote latching signals and instantly converting them into the precise formats the RevivalDRIVE requires. This allows you to instantly recall distinct presets with custom combinations of channels, mid boosts, or bypassed states at a single tap.

Complete Control Over Four Discrete Parameters

By utilizing two independent TRS control inputs (Inputs A & B), the Switcher Interface places four essential features of your RevivalDRIVE under external automation control:

• Active Channel: Remotely toggle between the Silicon and Valve-style preamp channels to match the gain structure of your preset song section.
• Bypass State: Completely engage or true-bypass the entire pedalboard circuit instantly.
• Mid Engage: Stomp into your pre-configured mid-range solo boost automatically when entering a lead loop.
• Blend Override: Instantly strip away the clean blended signal to shift from dynamic rhythm definition to 100% wet, singing sustain.

Intelligent Power Routing & Minimal Footprint

Engineered for clean, ultra-low-noise integration on professional touring boards, the Switcher Interface features a dedicated 9VDC power input alongside a convenient DC THRU pass-through connection. This allows you to daisy-chain power directly from the interface over to the main RevivalDRIVE chassis, preventing you from burning an extra, high-value outlet on your isolated power supply brick.

Product Intelligence & Contextual Attributes

• Best For: Touring Guitarists, Session Players, and Worship Rig Architects integrating a full-sized RevivalDRIVE into automated multi-loop programmable switchers.
• Rig Placement: Plugs directly between your master loop switcher's control jacks (SW, CTL, RMT) and the F/SWITCH input of the host pedal.
• Compared To: Manual companion footswitches (This interface replaces the manual Origin dual footswitch, trading foot control for automated preset recall).
• Made In: Designed and built to exacting boutique standards in England.

Sanctuary Expert Note: If you love the unparalleled analog amp replication of the big-box RevivalDRIVE but hate the idea of tap-dancing mid-song, this interface is your holy grail. It lets you treat your RevivalDRIVE exactly like a multi-channel MIDI-capable amplifier head within your switching presets. You can configure preset 1 for a pristine, bypassed clean tone, preset 2 for a dynamic edge-of-breakup rhythm channel, and preset 3 for a full-throttle lead boost—all fully automated. It is the missing link for pro-level board layouts.

Technical Specifications Matrix

• Control Inputs: 2 x 1/4" TRS Jacks (Input A handles Channel Selection & Bypass; Input B handles Mid Engage & Blend Override).
• Control Output: 1 x 1/4" TRS Jack (Output E routes combined commands directly to the pedal's F/SWITCH port).
• Power Pass-Through: 9VDC Input with internal THRU outlet for clean, single-cable power cascading.
• Visual Indicators: Integrated status LEDs displaying real-time Mid Engage and Blend Override states.
