Presenting the all new 3rd Power DRGN-100 Head in Black.
The SPECIAL DESIGN AMPLIFIERS series are a vintage inspired, modern featured range of electric guitar amplifiers designed in collaboration with Joe Satriani and 3rd Power’s Dylana Scott, resulting in the launch of the DRGN 100 Head. Its vintage inspiration comes from the legendary 1967/1968 Plexi Super Lead 100, and its modern features come from the vast combined knowledge and experience of Joe and Dylana.
The DRGN 100 encapsulates the soul and inspiration of iconic studio recorded guitar tones throughout history. At its core, the DRGN 100 is a hand-wired, point-to-point amplifier – built with loving attention to detail, by people skilled in the craft.
The DRGN 100 employs vintage-style, paper-bobbin transformers throughout. The laydown mains transformer delivers 500V to a quad of Svetlana EL34 output tubes.
A blend of four hand-selected JJ (ECC83S) and Sovtek 12AX7LPS dual triode preamp tubes are called into action performing as follows: Vintage Plexi Mode, High Gain Cascade Mode, Class-A Cathode-follower Tone Stack, Tube buffered FX Loop, and finally, the Phase Inverter.
Vintage style F&T electrolytic capacitors provide the internal circuitry with clean, filtered high voltage.
The DRGN 100 features innovative tone-crafting features to help you dial in your sound, whether in the studio, rehearsal room, or on stage, such as: Plexi/Cascade Preamp Modes, 400Hz Boost, Vintage/Modern Tone Stacks, Ultra Presence (4 Switchable High-Frequency Shelf settings), Low Freq. Push, Vintage/Focus Power Amp Modes.
HybridMASTER™ Volume Control
3rd Power's patented HybridMASTER™ control is located on the front panel giving you the confidence to play what you feel when you feel it at exactly the volume you need for the occasion. Not a power-scale or power soak, HybridMASTER simultaneously controls the volume, limits the DC current and regulates the DC plate voltage of the tube circuitry to deliver your desired tone at any volume setting that’s right for the room. The HybridMASTER is volume management executed to perfection!
When you plug your guitar into a DRGN 100 amplifier, each note leaps out with intense passion, authority, and glorious warmth.
Features of the DRGN 100 amplifier include:
• Quad EL34 Output Tubes for 100W of Power
• British Voiced Plexi & Cascaded High Gain Preamp Section (switchable)
• Switchable 400Hz Boost fattens and shapes unwound treble strings
• Dual-mode 3-Band EQ (JTM/JMP – switchable)
• Tube Buffered FX Loop (foot-switchable)
• Preamp Gain Boost (foot-switchable)
• Ultra-Presence High Frequency Shelving Filter: (1.7, 3.7, 4.3 and 5.2kHz corner frequencies)
• Switchable FOCUS mode (vintage or mid-forward for more vocal-like lead tones)
• Foot Switchable MUSICAL SILENT MUTE (FX tails finish their cycle before amp goes silent)
• HybridMaster™ Volume Management Technology (3P Patented)

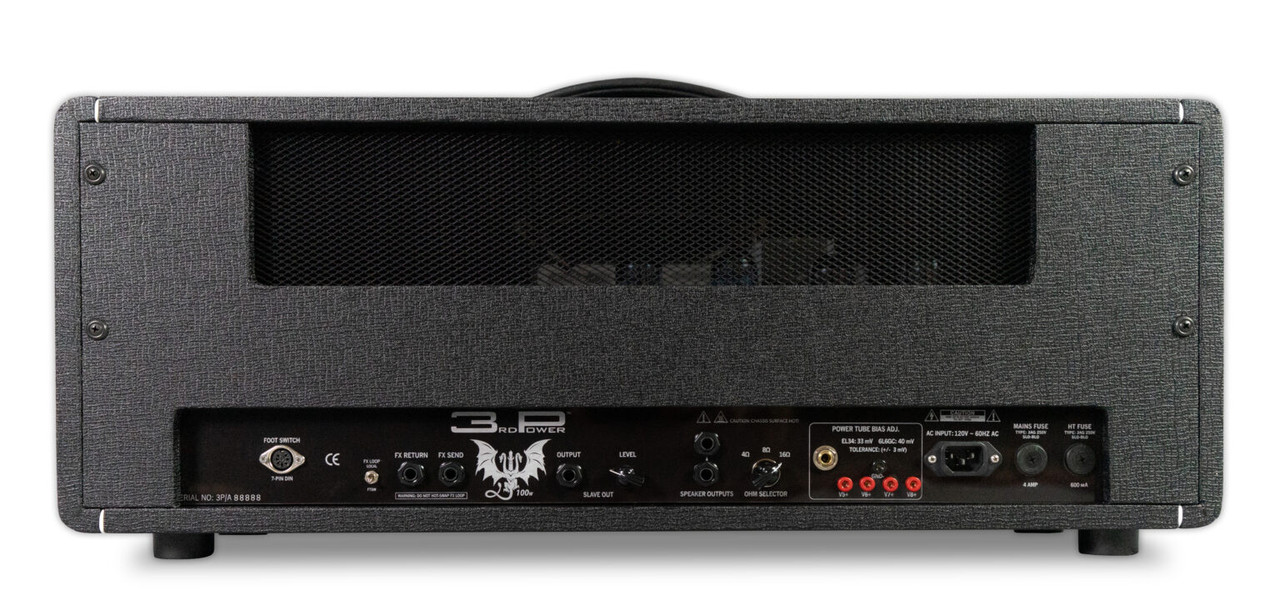

• Back-panel Bias Test Points and Adjustment Pot
• Custom Wound USA-made Power & Output Transformers by Heyboer
• 4 Button Pro Foot Switch & 7 Pin Cable (included)
• Hand-wired and Hand Built
• Limited Lifetime Warranty
Pair it with the matching DRGN 4x12 Cabinet for a truly powerful setup.
Model Name: DRGN 100
Output Architecture: 4x Power Tubes (Class AB), Fixed Bias
Power Rectification: (4x) 1000V 1N4007 Solid State Diodes
Plate Voltage: 120V AC input yields ~495V DC plate voltage (SS Rectified)
Power Output: ~100W (EL34)
Output Impedance: Switchable 16/8 and 4 Ohm Outputs
Country of Manufacture: 100% Designed and hand built in USA
Preamp Architecture: (3x ) JJ ECC83S, (1x) Sovtek 12AX7LPS
Dimensions: Head: 29” x 10.75” x 8.375”
Weight: 45 lbs.
Included Accessories: 4 Button Pro Foot Switch, Premium 15′ 7-Pin DIN cable
