Presenting the Meris MercuryX Reverb System.
"MercuryX takes the heart and soul of Mercury7 and expands it far beyond sci-fi into the highest quality and most flexible studio reverb ever created in a pedal format. All of our passion for pro audio has made it into both the algorithms and hardware performance of this pedal." - Meris Audio
MercuryX combines 8 custom Meris reverb algorithms and incorporates those into a modular system UI/architecture that Meris first introduced with the award winning LVX pedal. Ultraplate and Cathedra are from Mercury7 and are inspired by the moody sci-fi reverbs featured in Blade Runner. The 78 Room, Plate and Hall structures are inspired by the venerable sounds of a studio classic. Spring, Prism, and Gravity are brand new structures unique to MercuryX.
Modular Reverb System architecture
8 Custom Meris Reverbs: Ultraplate, Cathedra, 78 Room, 78 Plate, 78 Hall, Spring, Prism and Gravity
Expanded 2.54 secs of Stereo Predelay with modular Feedback Routing Location
Advanced ARM Processor
Configurable Reverb Structures, Types, and Processing Elements for the ultimate customization in reverb processing

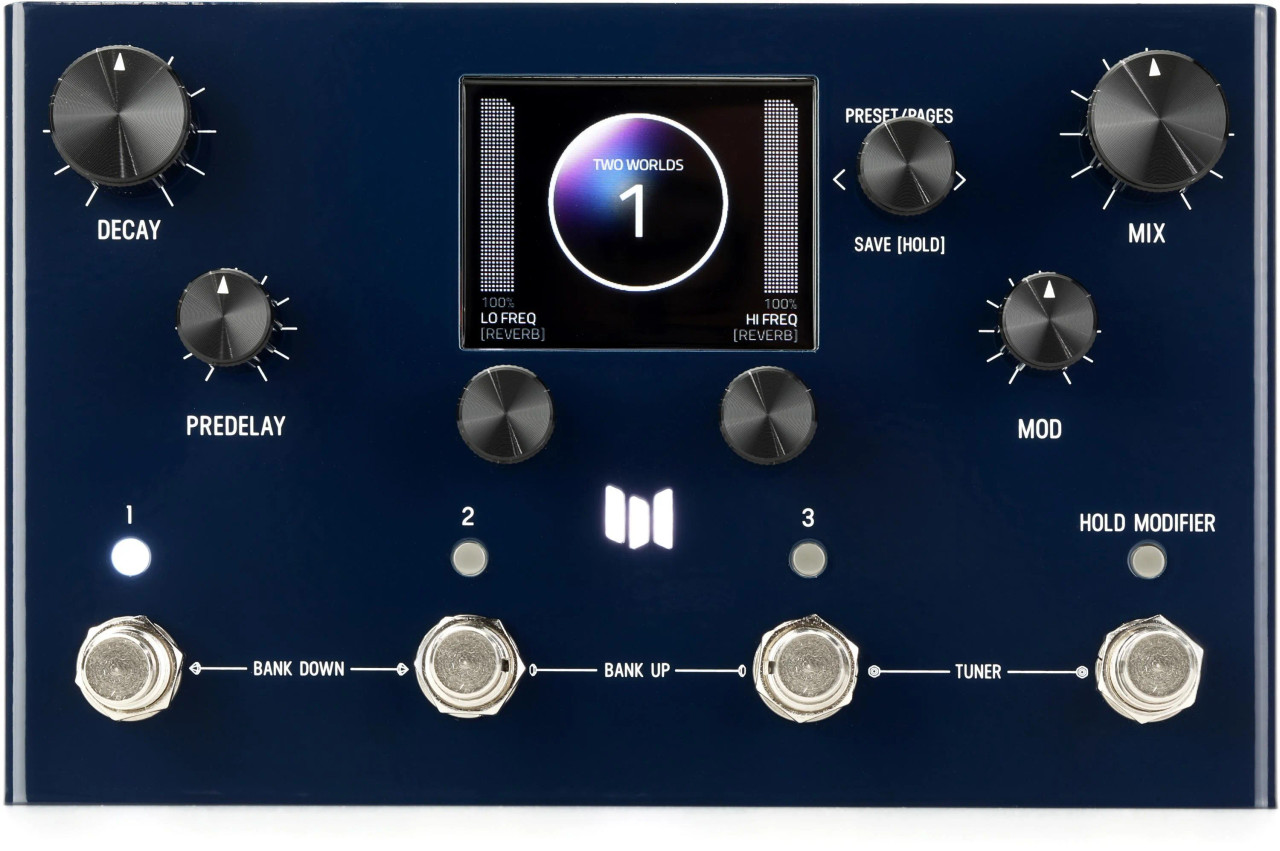

Intuitive Color Screen based User Interface
Expressive Hold Modifier Switch for on the fly control
99 Preset Locations in 33 Banks
Favorite Preset Bank for instant access to your 3 favorite presets
Instant Access Tuner with configurable Reference and Output mode
Deep Modifier Section lets you route control signals to processing parameters
New Independent Stereo Freeze alongside reverb
Gate Envelope Controls for every reverb type
All New Processing Elements including 79 Chorus, Vibrato, Vowel Mod, Tremolo, Hazy Lo-Fi and more
Selectable Note Divisions for each side of the stereo Predelay
Digitally controlled Analog mix bus

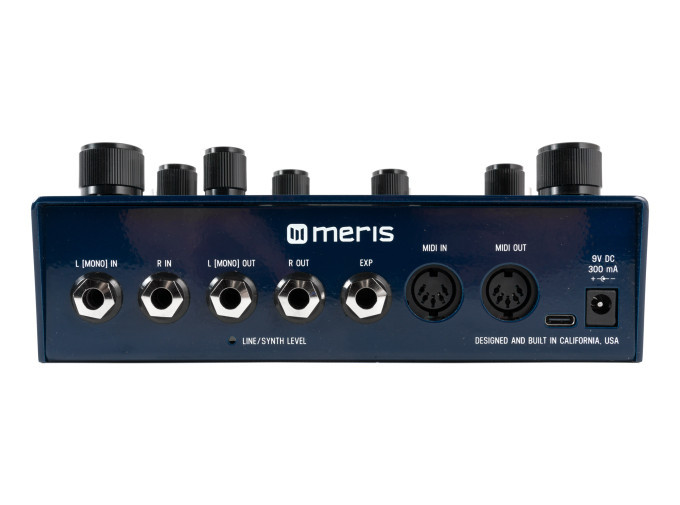

Stereo input and output with separate jacks for each
Switchable input/output headroom level for Instrument or Synthesizer / Line levels
MIDI In and Out over standard MIDI Din Jacks
Assignable Expression Pedal control for multiple parameters simultaneously
Dedicated Expression Pedal Jack
MIDI implementation for Continuous Control Parameters
MIDI Preset Send and Receive
MIDI beat clock synchronization
Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
Premium Analog Devices JFET input section
Dimmable screen and logo light
Color – Deep blue glossy coat
Designed and built in California, U.S.A.
Conversion 24 bit A/D and D/A
DSP 32 bit floating point
Sample Rate 48000 Hz
Input Impedance 1 Meg Ohm
SNR 115 dB Typical
Frequency Response 20Hz-20kHz
Max Input Level +9 dBu (instrument level setting)
+12.5 dBu (line/synth level setting)
Power 9V DC center-negative, 300mA, 2.1mm jack
Bypass Selectable True Bypass (Relay) or Analog Buffered Bypass
Dimensions 7.25” wide, 4.5” long, 2” tall. (Same depth and height as all other pedals.)
Weight 24 ounces
