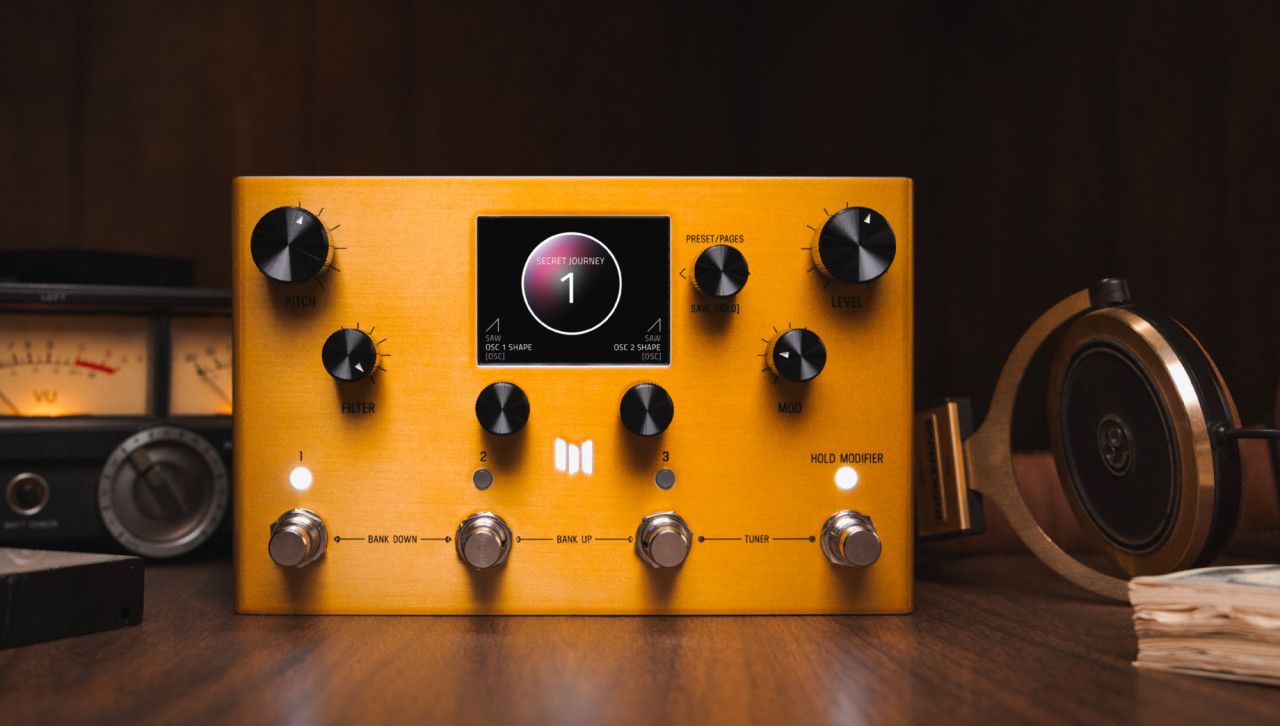

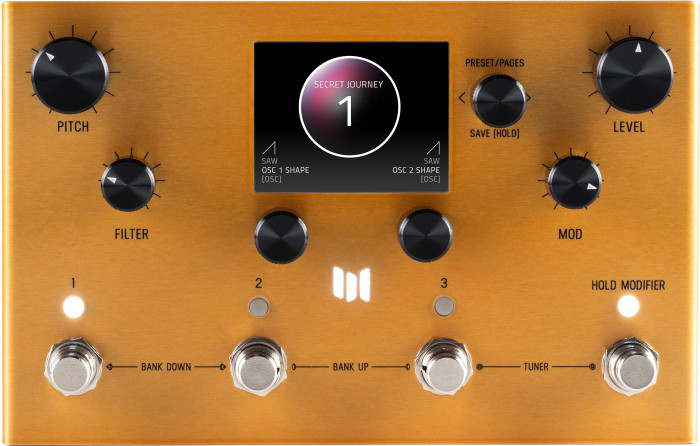

Presenting the Meris Enzo X Modular Instrument Synthesizer System.
"Modular Instrument Synthesizer with analog and digital synth heritage, advanced processing and high performance signal path.." - Meris Audio
Enzo X is a supernova expansion from the original Enzo into the highest quality and most flexible polyphonic synthesizer ever created in a pedal format (with no pickup installation required). We leveraged the simple and easy to use UI first developed for LVX. 5 synth modes including a 6 voice poly synth and modules including ambience, modulation, filters, drives and more will expand your creativity to the beyond.
Modular Instrument Synthesizer architecture
5 Synthesizer modes including Mono, Polyphonic and Dry Processing modes
Polyphonic Pitch Detection with no special pickup necessary
Synthesizer playable via instrument input OR MIDI keyboard
6 Fully Polyphonic Voices available simultaneously
ADSR Envelope Generators for both Amplitude and Filter
Configurable Oscillator and Filter types
SAW, TRIANGLE, and SQUARE Waveforms selectable per Oscillator w/ Cross Modulation
Intuitive, Award Winning Color Screen based User Interface adapted from LVX and MercuryX
Expressive Hold Modifier Switch for on the fly control
99 Preset Locations in 33 Banks
Favorite Preset Bank for instant access to your 3 favorite presets
Instant Access Tuner with configurable Reference and Output mode
Deep Modifier Section lets you route control signals to processing parameters
All New Processing Elements including Meris custom Flanger and Phaser
Digitally controlled Analog mix bus
Stereo input and output with separate jacks for each
Switchable input/output headroom level for Instrument or Synthesizer / Line levels
MIDI In and Out over standard MIDI Din Jacks
Assignable Expression Pedal control for multiple parameters simultaneously
Dedicated Expression Pedal Jack
MIDI implementation for Continuous Control Parameters
MIDI Preset Send and Receive
MIDI beat clock synchronization
Advanced ARM Processor
Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
Premium Analog Devices JFET input section
Dimmable screen and logo light
Color – Translucent Gold with Subtle Metallic Flake
Designed and Built in California, U.S.A.
Conversion 24 bit A/D and D/A
DSP 32 bit floating point
Sample Rate 48000 Hz
Input Impedance 1 Meg Ohm
SNR 115 dB Typical
Frequency Response 20Hz-20kHz
Max Input Level +9 dBu (instrument level setting)
+12.5 dBu (line/synth level setting)
Power 9V DC center-negative, 300mA, 2.1mm jack
Bypass Selectable True Bypass (Relay) or Analog Buffered Bypass
Dimensions 7.25” wide, 4.5” long, 2” tall. (Same depth and height as all other pedals.)
Weight 24 ounces
